Pay cash discounted price and save
EMI available for 12 months on regular price: ৳34,500
| Audio and Video | ||
| IP Camera Input | 8-ch (up to 40-ch), each up to 6 MP resolution |
|
| Two-Way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
|
| Display | ||
| Interface | 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
| Resolution | HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz HDMI/VGA simultaneous output |
|
| Decoding Capacity | up to 24-ch 1080P@30fps |
|
| Recording | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
| Resolution | 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Record Rate | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Bit Rate | 32 Kbps to 10 Mbps |
|
| Record Interval | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Others | Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps |
|
| Video Detection And Alarm | ||
| Video Detection | Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Facial Detection and Capture Face picture detection, face picture search； 4-ch face picture capture |
|
| Network | ||
| Ethernet Port | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface RS-485 (half-duplex) |
|
| Storage | ||
| Internal HDD | 2 SATA interfaces Up to 12 TB capacity for each disk |
|
| Auxiliary Interface | ||
| USB | Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0 |
|
| RS485 | RS-485 (half-duplex) |
|
| Power | ||
| Power Supply | 12 VDC, 5 A |
|
| Power Consumption | ≤ 60 W |
|
| Construction | ||
| Dimensions | 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch) |
|
| Net Weight | ≤ 2.1 kg (4.6 lb) |
|
| Warranty | ||
| Warranty | 1-Year |
|

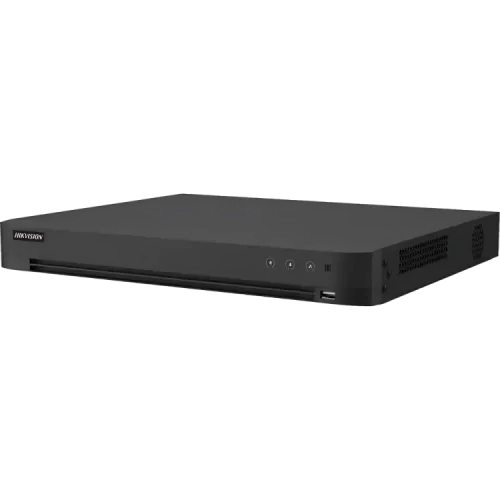

The Hikvision IDS-7232HQHI-M2/XT 1080p 1U H.265 AcuSense DVR has 32 channels and two HDDs in a 1U form size and uses powerful AcuSense technology to improve monitoring capabilities. It supports four-channel facial recognition or eight-channel advanced perimeter protection, with deep learning algorithms enabling exact detection. The Hikvision 32 Channel DVR also includes eight-channel AcuSearch technology, which ensures fast and precise searches. The Hikvision IDS-7232HQHI-M2/XT 32 Channel Digital Video Recorder uses effective H.265 pro+ compression to enhance storage efficiency without sacrificing video quality, offering up to 3K/5MP Lite at 12fps encoding and up to 40 IP camera inputs at 6MP. It has up to 24 channels of 1080p@30fps decoding capability and five adaptable signal inputs (HDTVI/AHD/CVI/CVBS/IP) for flexible connectivity. This Hikvision IDS-7232HQHI-M2/XT 32 Channel 1080p DVR performs at motion detection technology across all channels and has HDTVI two-way audio. The facial recognition feature supports up to 16 face picture libraries, with HDD and flash backup to ensure data integrity. The gadget is capable of facial detection and capture, as well as four-channel face picture comparison alerts. Deep learning-based motion detection 2.0 allows for exact human and vehicle classification, eliminating false alarms and facilitating rapid searches by object or event type. The Hikvision IDS-7232HQHI-M2/XT 32 Channel DVR has a variety of video and audio inputs and outputs, including HDMI, VGA, and CVBS, which enable high resolutions and simultaneous output. It supports a wide range of encoding resolutions and frame rates, as well as dual-stream recording and high audio compression. The network features a total bandwidth of 256Mbps, diverse protocol support, and the ability to link up to 128 remote connections. The Hikvision IDS-7232HQHI-M2/XT 32 Channel 1080p 1U H.265 AcuSense DVR also has a variety of auxiliary connections, including SATA with up to 12TB capacity per disk, USB 2.0 and 3.0 connectors, and an RS-485 serial interface.
