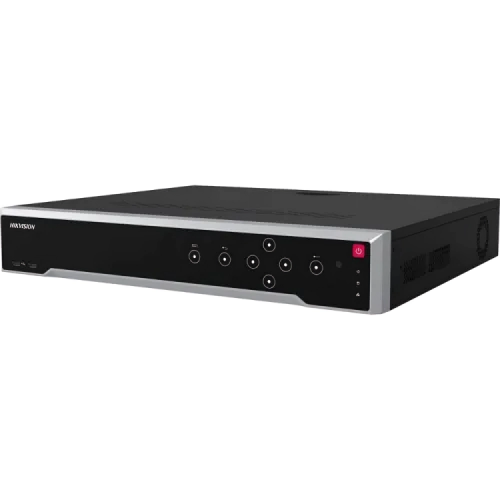

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR

Price: 50,000 53,100
Regular Price: 53,170
Brand: Hikvision
Status: In Stock
SKU: 228235
৳50,000
৳3,170 off
৳53,170

Main Features

  • Model: DS-7764NI-M4
  • Camera Inputs: Up to 64-Channel IP camera
  • Resolution Support: up to 32 MP (per channel)
  • Incoming/Outgoing Bandwidth: 400 Mbps
  • Ports: 2x HDMI and 1x VGA, 8K or dual 4K video outputs
Show More

Payment Methods

৳50,000

Pay cash discounted price and save

৳ 4,431/ month

EMI available for 12 months on regular price: ৳53,170

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Audio and Video
IP Camera Input64-ch Up to 32 MP resolution
* After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Two-Way Talk1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Display
InterfaceHDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
ResolutionHDMI 1: Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2: Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA: Output 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Decoding Capacity2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
Recording
CompressionAudio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Video Detection And Alarm
Alarm Input16/9
Playback And Backup
Sync Playback16-ch
Network
InterfaceESATA: 1x eSATA interface
SATA: 4x SATA interfaces
Capacity: Up to 16 TB capacity for each HDD
Serial Interface: 2x RS-485 (half-duplex), 1 RS-232
Alarm In/Out: 16/9
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*The Ctrl 12V power is controlled by alarm output 9.
DC 12V: 12 VDC, 1 A power output
Ethernet Port2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Storage
Internal HDDUp to 16 TB capacity for each HDD
eSATAYes
Auxiliary Interface
USBFront panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Power
Power Supply100 to 240 VAC, 50 to 60 Hz
Power Consumption≤ 15 W (without HDD)
Component Environment
Operational Conditions-10 °C to 55 °C (14 °F to 131 °F)
Construction
Dimensions445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Net Weight≤ 5 kg (without HDD, 11 lb.)
Warranty
Warranty1 Year

Description

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR Best Price in Bangladesh

The Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR is a powerhouse for complete video surveillance systems, with sophisticated features and flexible connectivity options. It guarantees outstanding clarity and coverage for large-scale environment monitoring, with the capability for up to 64 IP video inputs and resolutions of up to 32 MP. Its remarkable 400 Mbps incoming and outgoing capacity makes for seamless playback and data transfer. With two HDMI outputs, one of which may be used for 8K resolution, and a VGA output, the Hikvision DS-7764NI-M4 64 Channel 8K Network Video Recorder provides a range of configurable display combinations that can be tailored to various monitoring arrangements. The Hikvision 64 Channel 8K NVR ensures effective compression and storage of high-quality video footage by supporting many decoding formats, such as H.265+, H.265, H.264+, and H.264. It allows for thorough video examination and analysis with synchronous playback for 16 channels and decoding capacity supporting up to 2 channels at 32 MP and 2 channels at 8 MP concurrently. The network connectivity of the Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR is flawless; it supports up to 128 remote connections and is compatible with a number of protocols, including TCP/IP, RTSP, SMTP, and SNMP. Its sturdy design features support for RAID, four SATA connections with a maximum capacity of 16 TB for HDDs, and other auxiliary interfaces for increased expandability and flexibility, including eSATA, RS-485, and USB ports. For demanding surveillance applications, the Hikvision DS-7764NI-M4 64 Channel NVR is a great option because of its wide operating temperature range, 19-inch rack-mounted chassis, dependable performance, and compliance with industry standards.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR in Bangladesh?

The best price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR in Bangladesh is 50,000. You can buy the Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR at best price from our website.
