| General | ||
| Casing | Plastic | |
| Dimensions | Φ 89.9 mm × 70.1 mm (Φ 3.54" × 2.76") |
|
| Weight | Approx. 130 g (0.29 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
|
| Power Supply | 12 VDC ± 25% | |
| Power Consumption | Max. 2.2 W | |
| Camera | ||
| Image Sensor | 2MP CMOS |
|
| Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Minimum Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
| IR Distance | 20 m IR distance |
|
| Video | ||
| Resolution | 1920 ×1080 |
|
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps |
|
| Video Output | Switchable TVI/AHD/CVI/CVBS |
|
| Day/Night | Auto/Color/BW (Black and White) |
|
| BLC Mode | Yes | |
| Interface | ||
| Video Interface | 1 HD analog output |
|
| Lens | ||
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
|
| Mount Type | M12 |
|
| Angle of View | 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° |
|
| Warranty Information | ||
| Warranty | 01-Year |
|

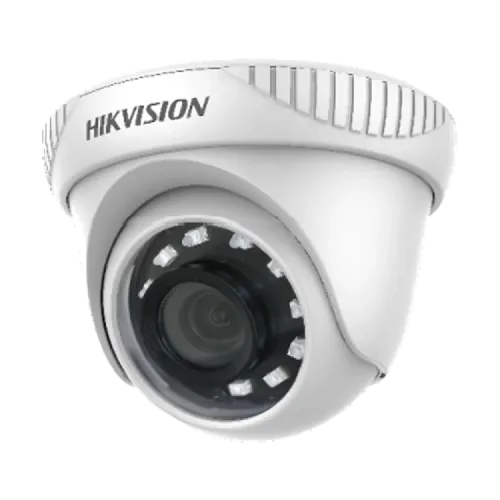

The Hikvision DS-2CE56D0T-IRP Dome CC Camera has a 2MP Camera that sits in the turret position. It uses Smart IR technology that allows it to see up to 20 meters of distance. It also has 4 signal choices to choose from which are TVI, AHD, CVI, and CVBS. The CCTV camera uses plastic material for its housing purpose and weighs approximately 250 grams. The camera uses a CMOS image sensor that allows it to have a resolution of 1920 by 1080 pixels. It uses a shutter time of 1/25 (1/30) second to 1/50,000 seconds. You will be able to get the PAL and NTSC signals from this camera so it's up to you to choose the right one for you. The Hikvision DS-2CE56D0T-IRP ECO 2MP Dome CC Camera comes with a 01-year warranty.
