| General | ||
| Casing | Front Cover: Metal Main Body: Plastic |
|
| Dimensions | 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") |
|
| Weight | Approx. 330 g (0.73 lb.) |
|
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
|
| Operating Conditions | 40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
| Power Supply | 12 VDC ± 25% |
|
| Power Consumption | Max 5W | |
| Camera | ||
| Image Sensor | 5 MP CMOS sensor |
|
| Effective Pixels | 5MP | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
| IR Distance | Up to 80m IR distance |
|
| IR LEDs | N/A | |
| Video | ||
| Resolution | 2560 (H) × 1944 (V) |
|
| Frame Rate | 30fps | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
|
| Day/Night | ICR | |
| Interface | ||
| Audio Interface | N/A | |
| Video Interface | Video Output: Switchable TVI/AHD/CVI/CVBS |
|
| Lens | ||
| Lens Type | Fixed Lens |
|
| Mount Type | M12 | |
| Focal Length | 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
|
| Angle of View | Field of View: 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° 8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52° 12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32° |
|
| Warranty Information | ||
| Warranty | 1 Year Warranty |
|

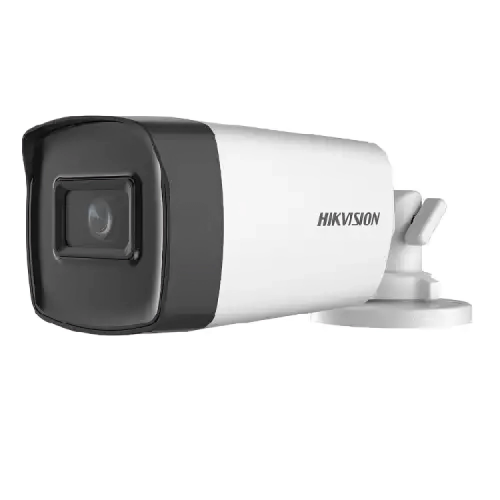

The Hikvision DS-2CE17H0T-IT5F 5MP Fixed Bullet CC Camera produces high-quality images with a resolution of 5 MP (2560 x 1944). It has a 5-megapixel CMOS sensor. It also has a wide digital dynamic range. The Hikvision DS-2CE17H0T-IT5F has 3.6 mm, 6 mm, 8 mm, and 12 mm fixed lenses. The lens is mounted in M12 format. The Hikvision CCTV camera has an IR range of up to 80 meters with Smart IR. The Hikvision DS-2CE17H0T-IT5F 5MP has day/night functionality and auto-night vision mode. The camera has a protection level of IP67-rated water and dust resistance.
One port for four switchable signals
The Hikvision DS-2CE17H0T-IT5F 5MP Fixed Bullet CC Camera offers one port for four switchable signals. The four switchable signals are: Transport Video Interface (TVI), Analog High Definition Video Interface (AHD), Composite Video Interface (CVI), and Composite Video Blanking and Sync (CVBS).
