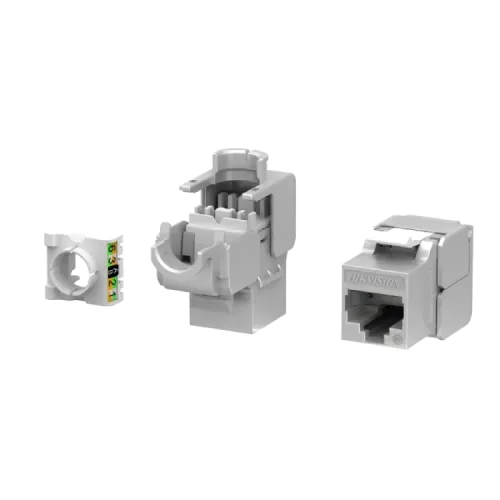

Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack

Description

Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack Best Price in Bangladesh | Computer Vision BD

The Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack is a high-performance, shielded keystone solution. Designed for advanced networking settings that require high signal integrity, simple installation, and long-term reliability. This Hikvision DS-1CK6AP180N Cat6a Keystone Jack is engineered to meet or exceed ISO/IEC 11801 Class EA and ANSI/TIA-568.2-D Category 6A requirements, ensuring superb electrical performance at data transmission rates of up to 500MHz. Ideal for high-speed 10 Gigabit Ethernet and 4 pair Power over Ethernet (4PPoE) applications, it provides low resistance and strong connectivity with a DC resistance of 20 milliohms or less and an insulation resistance of at least 500 megaohms. The Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack is designed with a completely shielded housing constructed of robust zinc alloy to reduce interference, making it ideal for high-density, high-interference settings. The small, tool-free, press-fit design allows for quick and environmentally responsible installation without soldering or tinning. It supports both solid and stranded conductors in the 22 to 24 AWG range and is compatible with a variety of cable types. The Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack is compatible with both TIA 568A and 568B wiring schemes and is designed to fit standard faceplates and blank patch panels. Built with a phosphor bronze conductor plated with 50 microinches of gold, it offers a dependable connection over time, with over 750 plug-to-jack mating cycles. The Hikvision DS-1CK6AP180N Cat6a RJ45 Keystone Jack features fire-resistant components that satisfy UL 94 V-0 requirements for added safety.
