Pay cash discounted price and save
EMI available for 12 months on regular price: ৳42,000
| Main Feature | ||
| Type | Gigabit Layer 2+ Managed Non-PoE Network Switch |
|
| Port | 48x Gigabit Ethernet Ports 6x Gigabit SFP Ports |
|
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
|
| Transmission Method | Forwarding Mode: Store-and-forward |
|
| Data Transmission Rate | Switching Capability: 216Gbps Total non-blocking throughput: 108Gbps Forwarding Rate: 160.704Mpps Packet Buffer: 16Mb Network Latency: <4µs |
|
| MAC Address Table | 32K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 27 link aggregation Spanning tree, 64 instances for STP/RSTP/MSTP |
|
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
|
| Hardware Features | ||
| LED | 1x tri-color LED for device tracking and status indication 54x green-color LEDs for data transferring 48x yellow-color LEDs for PoE powered |
|
| Power Supply | 60W Integrated Power Supply |
|
| Dimensions (L x W x H) | 440mm(L)x301mm(W)x44mm(H) |
|
| Weight | 4.0Kg | |
| Manufacture Warranty | ||
| Manufacture Warranty | 3 Years | |

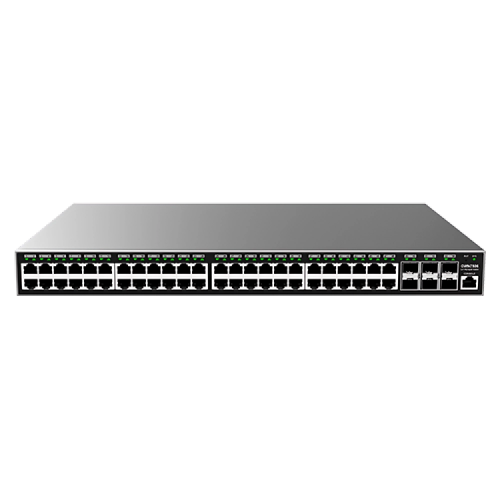

The Grandstream GWN7806 is a 48-port Gigabit Layer 2+ managed network switch supporting many IEEE standards like 802.3af/at for Power over Ethernet and a wide range of network protocols like IPv4 and IPv6. Allows for high-speed data transfer and connectivity for a variety of networking needs with 48 Gigabit ports and 6 SFP+ connectors. Efficient data processing is ensured by its store-and-forward forwarding mode, non-blocking throughput of 108Gbps, and switching capabilities of 216Gbps. Advanced features include extensive Quality of Service (QoS) and Access Control Lists (ACL) for traffic management and security, support for VLANs, spanning tree protocols, static routing, and multicast operations like IGMP and MLD snooping. Strong maintenance and monitoring features are provided by RMON, LLDP, SNMP, and diagnostic tools like Ping and Traceroute. The security features of the Grandstream GWN7806 48 Port Gigabit Network Switch are many and include port security, user authentication, MAC filtering, and defense against DoS and ARP inspection, among other threats. The GWN7806 provides a dependable networking solution appropriate for a range of commercial environments. It supports desktop and rack-mount configurations and has a sturdy design with three fans for cooling.
