| Main Feature | ||
| Type | Gigabit Layer 2+ Managed Non-PoE Network Switch | |
| Port | 24x Gigabit Ethernet Ports 4x Gigabit SFP Ports | |
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s | |
| Transmission Method | Forwarding Mode: Store-and-forward | |
| Data Transmission Rate | Switching Capability: 56Gbps Total non-blocking throughput: 28Gbps Forwarding Rate: 41.66Mpps Packet Buffer: 4.1Mb Network Latency: Avg<4µs | |
| MAC Address Table | 8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 8 link aggregation groups Spanning tree, 16 instances for STP/RSTP/MSTP | |
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) | |
| Hardware Features | ||
| LED | 1x tri-color LED for device tracking and status indication, 28x green LEDs for data ports | |
| Power Supply | 30W Integrated Power Supply | |
| Dimensions (L x W x H) | 440mm(L)x200mm(W)x44mm(H) | |
| Weight | 2.7Kg | |
| Manufacture Warranty | ||
| Manufacture Warranty | 3 Years | |

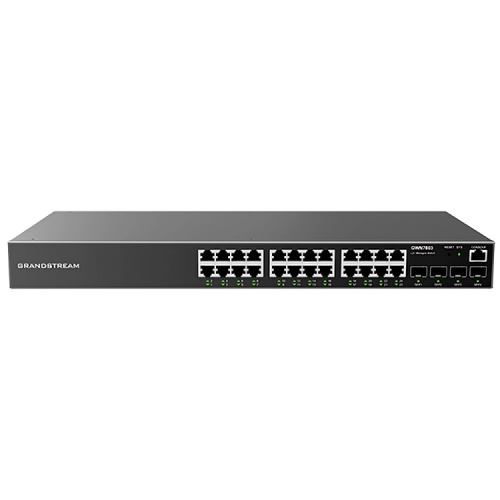

The Grandstream GWN7803 is a dependable and feature 24-port Gigabit Layer 2+ network switch designed to fulfill the diversified requirements of modern networking settings. For PoE models, its smart power control allows for dynamic power allocation per port, guaranteeing effective power management. It provides smooth integration into a variety of network architectures and is compatible with IPv6 and IPv4 networks. The extensive security capabilities, which offer strong defense against network threats, include quaternary binding of IP, MAC, VLAN & port, ARP Inspection, IP Source Guard, DoS prevention, and DHCP snooping. Grandstream's cloud and on-premise Wi-Fi management solutions, GWN.Cloud and GWN Manager, are compatible with the management options, which include a local Web UI for switch administration. Network traffic can be prioritized thanks to built-in QoS, which improves overall network performance. The Grandstream GWN7803 24 Port Network Switch supports a broad range of network protocols and offers store-and-forward forwarding, which guarantees effective data handling. Its 30W integrated power supply and flexible auxiliary connections are part of its small yet strong design. With a switching capacity of 56Gbps and a total non-blocking throughput of 28Gbps, the Grandstream GWN7803 24-port switch guarantees lag-free and seamless data transfer. Strong switching features include support for link aggregation, VLANs, spanning tree protocols, and 8K static, dynamic, and filtering MAC addresses. With user hierarchical administration, authentication procedures, port isolation, storm control, and other security measures, security is of the utmost importance. In addition to supporting loop protection, the Grandstream GWN7803 24-port Gigabit Layer 2+ controlled network switch has a Kensington Security Slot for added physical security.
