Pay cash discounted price and save
EMI available for 12 months on regular price: ৳20,000
| Main Feature | ||
| Type | Gigabit Layer 2+ Managed Non-PoE Network Switch |
|
| Port | 16x Gigabit Ethernet Ports 4x Gigabit SFP Ports |
|
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
|
| Transmission Method | Forwarding Mode: Store-and-forward |
|
| Data Transmission Rate | Switching Capability: 40Gbps Total non-blocking throughput: 20Gbps Forwarding Rate: 29.76Mpps Packet Buffer: 4.1Mb Network Latency: Avg<4µs |
|
| MAC Address Table | 8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 8 link aggregation groups Spanning tree, 16 instances for STP/RSTP/MSTP |
|
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
|
| Hardware Features | ||
| LED | 1x tri-color LED for device tracking and status indication, 20x green LEDs for data ports |
|
| Power Supply | 30W Integrated Power Supply |
|
| Dimensions (L x W x H) | 440mm(L)x200mm(W)x44mm(H) |
|
| Weight | 2.6Kg | |
| Manufacture Warranty | ||
| Manufacture Warranty | 3 years | |

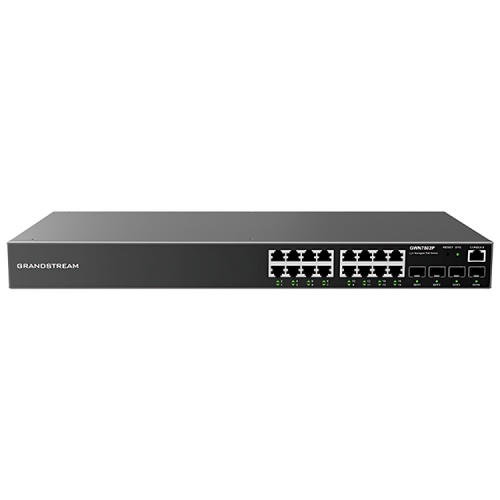

The Grandstream GWN7802 16 Port Gigabit Layer 2+ Managed Network Switch with 16 Gigabit Ethernet ports and four Gigabit SFP ports, offers a wide range of connectivity choices for different networks and devices. With a forwarding rate of 29.76 Mpps and a switching capacity of 40Gbps, it guarantees effective and seamless data transport. With a sizable 30W power supply, the Grandstream GWN7802 16 Port Gigabit Layer 2+ Managed Network Switch features smart power control, enabling dynamic power allocation per port. With adaptability and versatility, it supports IPv6 and IPv4 networks. Network integrity is ensured and attacks are prevented by advanced security features such as IP source guards, port security, user hierarchical management, and DoS attack protection. In addition, traffic prioritization is made possible by integrated QoS, and network scalability and efficiency are improved by link aggregation and VLAN support. Flexibility in network administration is enabled by a number of platforms, such as GWN.Cloud, GWN Manager, and local web UI. The Grandstream GWN7802 16 Port Gigabit Layer 2+ Network Switch excels at providing dependable and secure networking performance for companies of all sizes, whether it is installed in desktop, wall-mount, or rack-mount configurations.
