Pay cash discounted price and save
EMI available for 12 months on regular price: ৳16,500
| Main Feature | ||
| Type | Gigabit Layer 2+ Managed PoE Network Switch |
|
| Port | 8x Gigabit Ethernet Ports 2x Gigabit SFP Ports |
|
| Network Standard | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
|
| Transmission Method | Forwarding Mode: Store-and-forward |
|
| Data Transmission Rate | Switching Capability: 20Gbps Total non-blocking throughput: 10Gbps Forwarding Rate: 14.88Mpps Packet Buffer: 4.1Mb Network Latency: Avg<4µs |
|
| MAC Address Table | 8K static, dynamic and filtering MAC addresses 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 8 link aggregation groups Spanning tree, 16 instances for STP/RSTP/MSTP |
|
| Environment | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
|
| Hardware Features | ||
| LED | 1x tri-color LED for device tracking and status indication 10x green-color LEDs for data ports 8x yellow-color LEDs for PoE ports |
|
| Power Supply | 150W Integrated Power Supply 30W Max Output Power per PoE Port 120W Max Total PoE Output Power |
|
| Dimensions (L x W x H) | 330mm(L)x175mm(W)x44mm(H) |
|
| Weight | 2Kg | |
| Manufacture Warranty | ||
| Manufacture Warranty | 3 Years | |

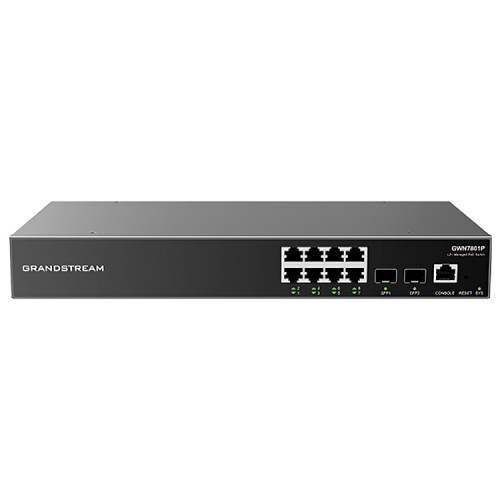

The Grandstream GWN7801P is a powerful 8-port Gigabit Layer 2+ Managed PoE Network Switch that is designed to meet the needs of current networks. It provides adaptable connectivity options appropriate for a range of network configurations with its 8 Gigabit Ethernet ports and 2 Gigabit SFP interfaces. With a forwarding rate of 14.88 Mpps and a switching capacity of 20 Gbps, it guarantees uninterrupted data transfer even in scenarios with heavy traffic. Support for both IPv4 and IPv6 networks, integrated Quality of Service (QoS) for traffic prioritization, and a strong 120W PoE power budget for powering compatible devices are just a few of its extensive features. Advanced security features like port security, DHCP snooping, and DoS attack avoidance are also included in the Grandstream GWN7801P 8 Port Gigabit Layer 2+ PoE Network Switch, guaranteeing network integrity and defense against possible threats. Furthermore, GWN.Cloud, GWN Manager, and a local Web UI are among the practical management alternatives it provides for effective network management. Grandstream GWN7801P 8 Port Gigabit Layer 2+ Managed PoE Network Switch is a dependable and feature-rich solution for businesses and enterprises looking for a high-performance network infrastructure. Its smart power control for dynamic PoE allocation, extensive protocol support, and LED indicators for easy monitoring make it an excellent choice.
