Pay cash discounted price and save
| Expansion Slots | ||
| PCI | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
|
| Memory | ||
| Type | Intel Z690 Express Chipset | |
| Graphics | ||
| Graphics | Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Connector & Ports | ||
| HDMI | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Others Features | ||
| Special Features | PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) M.2 Socket 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard |
|
| Warranty Information | ||
| Manufacturing Warranty | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|

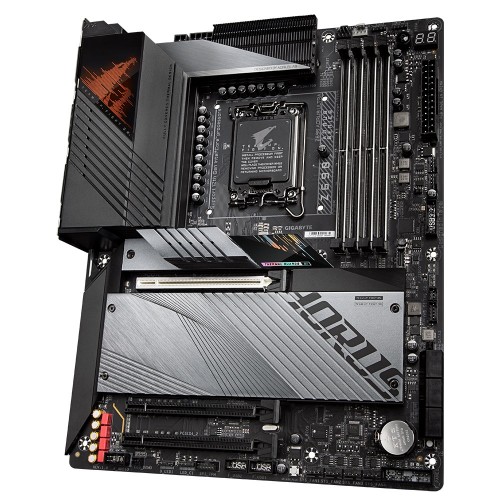

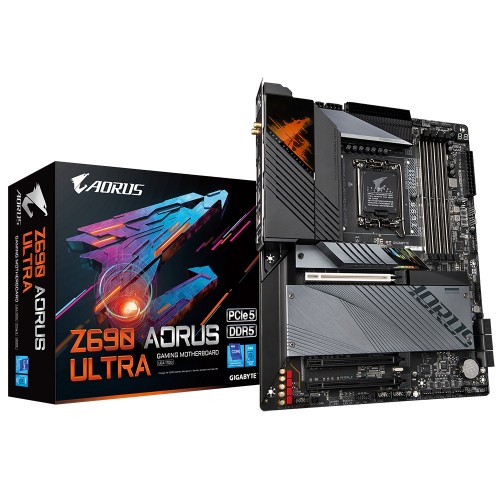

Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming MotherboardTo ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, the GIGABYTE Z690 series equip the best VRM design ever built with the highest quality components. Provide stable power for CPU integrated PCIe & Memory controller. GIGABYTE gets Z690 Motherboards ready to work with the upcoming PCIe 5.0 device which is expected to experience Twice bandwidth. To reach the high speed and maintain good signal integrity, Gigabyte R&D selects the low impedance PCB to make it work. GIGABYTE Z690 motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing, and a reliable SMD slot. In addition to the hardware upgrades, the user-friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. DDR5 delivers a 50% improvement compared to the last generation. DDR5 massively elevates the system-level performance. DDR5 provides more bandwidth to keep up with the higher CPU core count bandwidth requirement. The new memory architecture also reduces power consumption. The exclusive 3 PCIe 4.0 M.2 and 2nd Generation 7000 MB/s SSD provides unparalleled Read / Write performance up to 21053 and 15499 MB/s. With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy. AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 6200MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. GIGABYTEs exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with a wide range. All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. It also has Ultra Durable SMD DDR5 Memory Armor. The DDR5 Auto Booster automatically boosts the Native DDR5 frequency to 5000MHz while the system is under heavy loading with a single click. The increased surface area is up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. TMOS is a TRUE single-piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece designs. TMOS features several channels and inlets on the heatsink. This design allows for the airflow to go through which leads to a great improvement in the heat transfer performance. Adoption of 2.5G LAN provides up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. It Supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard offers a 2-Year Warranty.
Get specific details about this product from customers who own it.
