Pay cash discounted price and save
| Expansion Slots | ||
| PCI | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
|
| Memory | ||
| Type | Intel Z690 Express Chipset | |
| Graphics | ||
| Graphics | Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Connector & Ports | ||
| HDMI | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Others Features | ||
| Special Features | PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) M.2 Socket 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards |
|
| Warranty Information | ||
| Manufacturing Warranty | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|

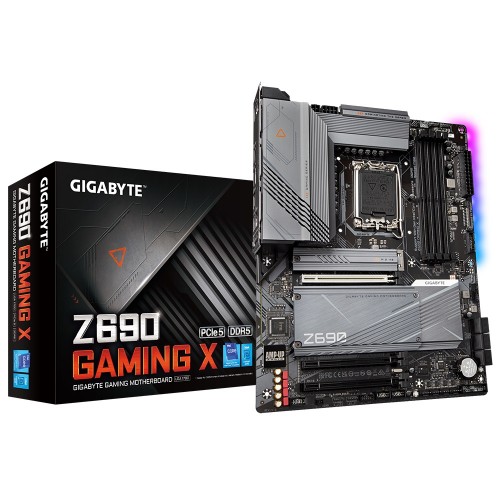

The Gigabyte Z690 GAMING X 12th Gen ATX Motherboard is featured with 16+1+2 Twin Hybrid Digital VRM Design with 60A DrMOS* and Tantalum Polymer Capacitor, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. It has a DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It has a Fast 2.5GbE LAN with Bandwidth Management. It is equipped with AMP-UP Audio with ALC1220 and WIMA Audio Capacitors. It has 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The Gigabyte Z690 GAMING X comes with 3 years of warranty.
Get specific details about this product from customers who own it.
