| Expansion Slots | ||
| PCI | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors (Please refer "CPU Support List" for more information.) |
|
| Memory | ||
| Type | AMD X570 | |
| Graphics | ||
| Graphics | Supported Memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Maximum Memory : 128GB Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
|
| Connector & Ports | ||
| HDMI | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
|
| Others Features | ||
| Special Features | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot. 2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only |
|
| Warranty Information | ||
| Manufacturing Warranty | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242 /2260/ 2280/ 22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
|

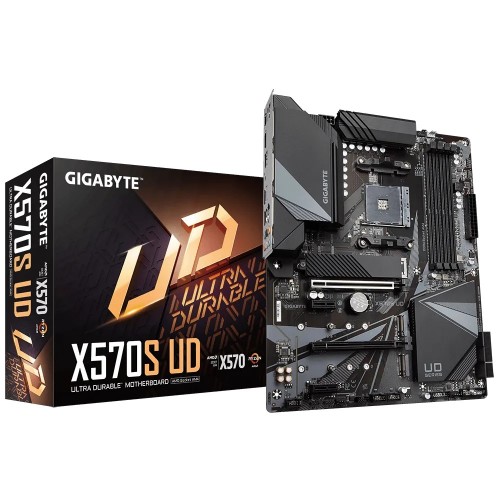

Gigabyte X570S UD Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard comes with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x 4 M.2 with Thermal Guard, Fast 2.5GbE LAN with Bandwidth Management and Rear and Front USB3.2 Type-C for Fast and Versatile Connections. In this X570S UD motherboard, uses an unprecedented and innovative thermal design, that ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming. The X570S UD provides all next generation network, storage, and connectivity to keep you up to speed. This motherboard has High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP. In this Gigabyte X570S UD motherboard, the RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Gigabyte X570S UD motherboard and reinforce every slot to make each of them solid and durable. The Latest Gigabyte X570S UD Motherboard comes with 03 years warranty.
