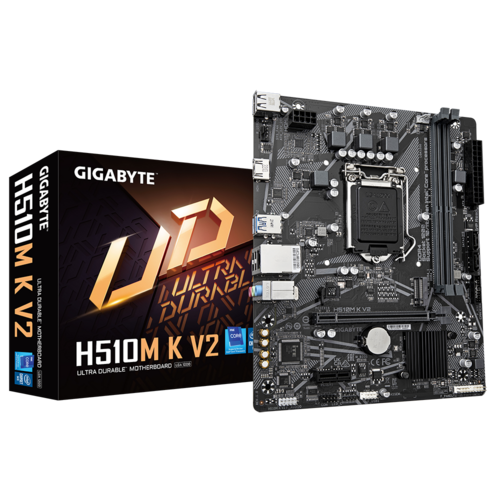

 DDR4 Intel Motherboard-500x500.png "Gigabyte H510M K V2 (1.0) DDR4 Intel Motherboard")
 DDR4 Intel Motherboard2-500x500.png "Gigabyte H510M K V2 (1.0) DDR4 Intel Motherboard")
 DDR4 Intel Motherboard1-500x500.png "Gigabyte H510M K V2 (1.0) DDR4 Intel Motherboard")
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳10,400
| Primary Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU |
|
| Chipset | Intel B470 Express Chipset |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot: Supporting PCIe 4.0 and running at x16 (PCIe 4.0 is only supported by 11th-generation processors.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM |
|
| Supported Memory | 1th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium®/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64GB (32 GB single DIMM capacity) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
|
| Supported Storage | 1 x M.2 connector: Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors |
|

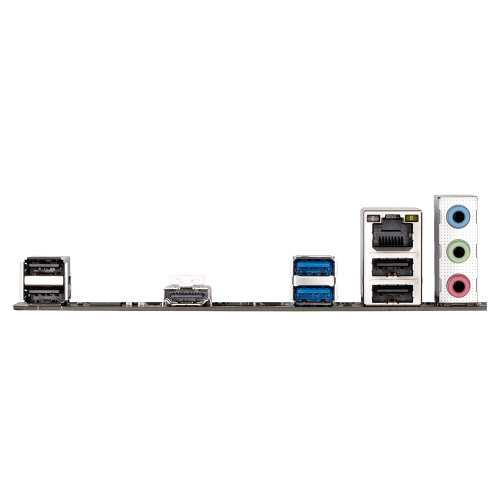

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Others Features | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Year | |
The GIGABYTE H510M K Intel Micro ATX Motherboard is a reliable and efficient choice for building a compact and versatile desktop system. Designed to support 11th and 10th Gen Intel Core Processors with an LGA1200 socket, this motherboard offers compatibility with a wide range of CPUs. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of up to 64 GB. For graphics output, it features an HDMI port, providing a convenient connection for displays. Equipped with a Realtek GbE LAN chip, the GIGABYTE H510M K offers network speeds of up to 1 Gbps, ensuring fast and stable internet connectivity. The motherboard also delivers high-quality audio through its 8-channel HD Audio with high-quality capacitors, making it suitable for immersive sound experiences. It includes an NVMe PCIe Gen3 x4 2280 M.2 connector, allowing for high-speed storage solutions. The Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers, including a FAN STOP feature, ensures efficient cooling and quiet operation. The GIGABYTE APP Center provides an easy-to-use interface for managing various system utilities, enhancing the user experience. Additionally, the anti-sulfur resistor design helps protect against sulfur corrosion, ensuring durability and longevity. Overall, the GIGABYTE H510M K is a solid foundation for a variety of builds, catering to gaming, productivity, and general use.
