Pay cash discounted price and save
EMI available for 12 months on regular price: ৳30,920
| Main Features | ||
| Certification | 80 PLUS Platinum |
|
| Efficiency (Approx.) | 92% at typical load |
|
| Fan Size | 140mm Double Ball Bearing fan |
|
| Input | ||
| Voltage | 100-240 Vac (full range) |
|
| Frequency Range | 60-50 Hz |
|
| Current | 15-7.5A |
|
| Output | ||
| Total Power | 1600W |
|
| Connector | ||
| Main Power | ATX/MB 20+4 Pin x 1 : 610mm*1 |
|
| PCI-E | PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 |
|
| SATA | SATA x 16 : 650mm+150mm+150mm+150mm*4 |
|
| CPU | CPU/EPS 4+4 Pin x 2 : 650mm*2 |
|
| Floppy | 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
|
| Warranty Information | ||
| Manufacturing Warranty | 10 Years |
|

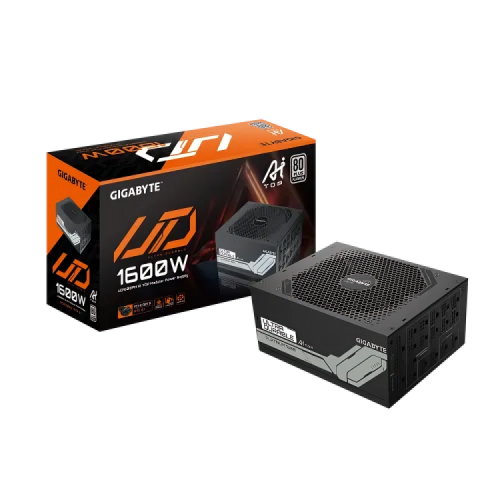

The Gigabyte GP-UD1600PM PG5 1600W Power Supply is a top-tier, full modular unit designed to deliver exceptional performance for high-end gaming rigs, workstations, and professional PCs. With a powerful 1600W output capacity, this compact power supply measures just 150 x 190 x 86mm, making it ideal for builds requiring both power and space efficiency. Certified with the 80 PLUS Platinum rating, the Gigabyte GP-UD1600PM PG5 Power Supply achieves up to 92% efficiency under typical loads, ensuring reduced energy consumption and heat generation. Compliant with the Intel ATX 12V v3.1 standard, it features advanced active PFC (greater than 0.9), wide input voltage support from 100 to 240 Vac, and frequency compatibility between 50 and 60 Hz for global use. Cooling is managed by a durable 140mm double ball bearing fan, offering quiet, long-lasting operation backed by an MTBF of over 100,000 hours. The Gigabyte GP-UD1600PM PG5 1600W 80 PLUS Platinum Power Supply includes comprehensive protections such as OVP, OPP, SCP, UVP, OCP, and OTP, safeguarding your components from electrical faults and overheating. It also provides a Power Good signal between 100-150ms and a hold-up time exceeding 16ms to ensure stable power delivery during fluctuations. This power supply’s fully modular design features flat, all-black cables with an extensive connector lineup including 1x ATX 20+4 Pin, 2x CPU/EPS 4+4 Pin, multiple PCI-E connectors, 16 SATA power connectors, and Molex and floppy connectors for versatile hardware compatibility. The Gigabyte GP-UD1600PM PG5 supports complex multi-GPU setups and large storage arrays with ease, providing clean cable management and superior build flexibility.The Gigabyte GP-UD1600PM PG5 1600W Power Supply is an excellent choice for enthusiasts seeking a reliable, efficient, and powerful PSU. Its combination of high wattage, platinum-level efficiency, robust protections, and modular cabling makes the Gigabyte GP-UD1600PM PG5 Power Supply a standout option for next-generation PC builds.
Get specific details about this product from customers who own it.
| Main Features | ||
| Certification | 80 PLUS Platinum |
|
| Efficiency (Approx.) | 92% at typical load |
|
| Fan Size | 140mm Double Ball Bearing fan |
|
| Input | ||
| Voltage | 100-240 Vac (full range) |
|
| Frequency Range | 60-50 Hz |
|
| Current | 15-7.5A |
|
| Output | ||
| Total Power | 1600W |
|
| Connector | ||
| Main Power | ATX/MB 20+4 Pin x 1 : 610mm*1 |
|
| PCI-E | PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 |
|
| SATA | SATA x 16 : 650mm+150mm+150mm+150mm*4 |
|
| CPU | CPU/EPS 4+4 Pin x 2 : 650mm*2 |
|
| Floppy | 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
|
| Warranty Information | ||
| Manufacturing Warranty | 10 Years |
|
The Gigabyte GP-UD1600PM PG5 1600W Power Supply is a top-tier, full modular unit designed to deliver exceptional performance for high-end gaming rigs, workstations, and professional PCs. With a powerful 1600W output capacity, this compact power supply measures just 150 x 190 x 86mm, making it ideal for builds requiring both power and space efficiency. Certified with the 80 PLUS Platinum rating, the Gigabyte GP-UD1600PM PG5 Power Supply achieves up to 92% efficiency under typical loads, ensuring reduced energy consumption and heat generation. Compliant with the Intel ATX 12V v3.1 standard, it features advanced active PFC (greater than 0.9), wide input voltage support from 100 to 240 Vac, and frequency compatibility between 50 and 60 Hz for global use. Cooling is managed by a durable 140mm double ball bearing fan, offering quiet, long-lasting operation backed by an MTBF of over 100,000 hours. The Gigabyte GP-UD1600PM PG5 1600W 80 PLUS Platinum Power Supply includes comprehensive protections such as OVP, OPP, SCP, UVP, OCP, and OTP, safeguarding your components from electrical faults and overheating. It also provides a Power Good signal between 100-150ms and a hold-up time exceeding 16ms to ensure stable power delivery during fluctuations. This power supply’s fully modular design features flat, all-black cables with an extensive connector lineup including 1x ATX 20+4 Pin, 2x CPU/EPS 4+4 Pin, multiple PCI-E connectors, 16 SATA power connectors, and Molex and floppy connectors for versatile hardware compatibility. The Gigabyte GP-UD1600PM PG5 supports complex multi-GPU setups and large storage arrays with ease, providing clean cable management and superior build flexibility.The Gigabyte GP-UD1600PM PG5 1600W Power Supply is an excellent choice for enthusiasts seeking a reliable, efficient, and powerful PSU. Its combination of high wattage, platinum-level efficiency, robust protections, and modular cabling makes the Gigabyte GP-UD1600PM PG5 Power Supply a standout option for next-generation PC builds.
