| Primary Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channe |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| USB (s) | Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Others Features | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

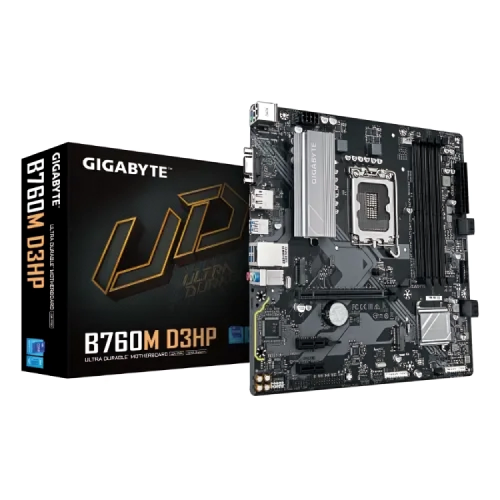

The GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard is an efficient platform for customers to construct powerful PCs with the newest Intel® Core™ CPUs. This GIGABYTE B760M D3HP DDR5 Motherboard supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® CPUs. It utilizes the efficient Intel® B760 Express Chipset for high performance and hardware compatibility. With four DDR5 DIMM slots, it can accommodate up to 256 GB of system memory and achieve speeds of up to 5600 MT/s with high-end CPUs. The dual-channel memory design allows for quicker data transfer, and users may make use of XMP functionality to maximize overclocking. It has onboard Intel® UHD Graphics compatibility and is a fully integrated GIGABYTE B760M D3HP DDR5 system that supports triple-display output via D-Sub, HDMI 2.1, and DisplayPort 1.2, all of which can produce 4K images. For storage, this GIGABYTE Motherboard has two PCIe 4.0 x4 M.2 connections and four SATA 6Gb/s ports that enable RAID 0, 1, 5, and 10 for customizable storage configurations. A PCIe 4.0 x16 slot for graphics cards or NVMe SSDs allows for expansion, as do two PCIe 3.0 x1 slots for extra devices. A Realtek® 1GbE LAN chip ensures reliable networking, while the Realtek® High Definition Audio CODEC supports 7.1-channel surround sound and S/PDIF Out. The motherboard also has a robust internal I/O configuration, which includes fan headers, LED headers, and extensive USB connectivity, such as USB 3.2 Gen 1 Type-C®, USB 3.2 Gen 1, and USB 2.0, to ensure current compatibility. Smart Fan 6 technology monitors temperature with hybrid fan headers and the FAN STOP feature, ensuring silent and economical operation. Q-Flash Plus allows users to upgrade BIOS without installing a CPU or RAM, which improves usability. The GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard is powered by a long-lasting Hybrid 4+1+1 Phase Digital VRM Solution, which provides consistent and clean power for steady performance. This Micro ATX form factor motherboard, measuring 24.4cm x 24.4cm, is perfect for tiny configurations while also fully supporting Windows 10 and 11 64-bit PCs. The GIGABYTE B760M D3HP DDR5 Motherboard is an excellent choice for gaming, productivity, and future-ready PC setups, thanks to its powerful features, contemporary connections, and extensive CPU and memory compatibility.
