Pay cash discounted price and save
| Expansion Slots | ||
| PCI | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Memory | ||
| Type | Intel B660 Express Chipset | |
| Graphics | ||
| Graphics | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Connector & Ports | ||
| HDMI | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Others Features | ||
| Special Features | PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
|
| Warranty Information | ||
| Manufacturing Warranty | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|

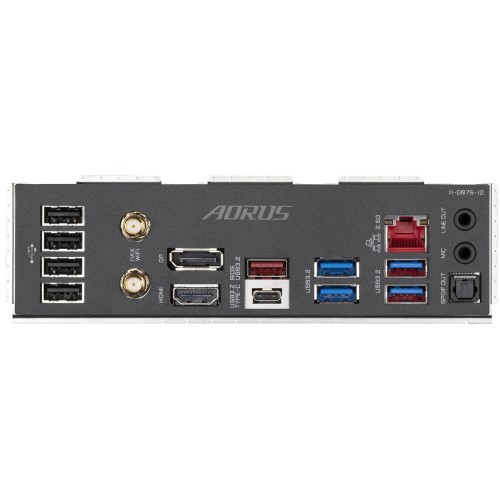

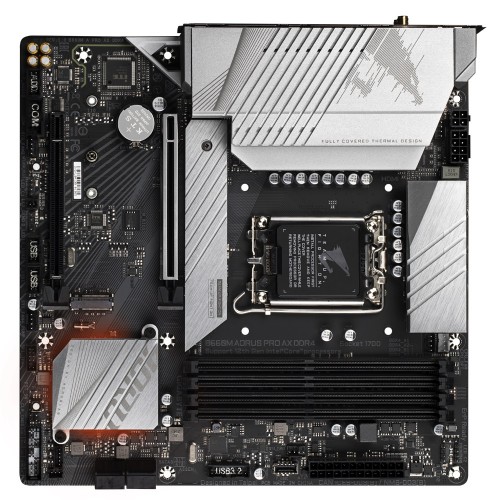

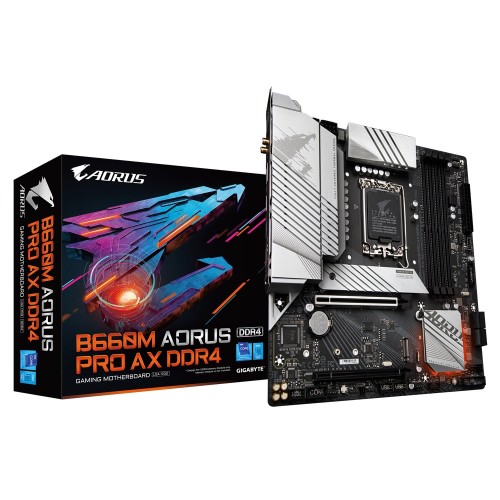

The Gigabyte B660M Aorus Pro AX DDR4 comes with LGA1700 which supports 12th Gen Intel Core Series Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS. it supports Shielded Memory Routing for Better Memory Overclocking. It is a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is equipped with WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna and Blazing Fast Intel 2.5GbE LAN with Bandwidth Management. It offers Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard and SuperSpeed USB 3.2 Gen 2x2 Type-C delivers up to 20Gb/s transfer speeds. It has pre-installed IO Shield for easy and quick installation. It comes with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. The Gigabyte B660M Aorus Pro AX DDR4 comes with 3 years of warranty.
Get specific details about this product from customers who own it.
