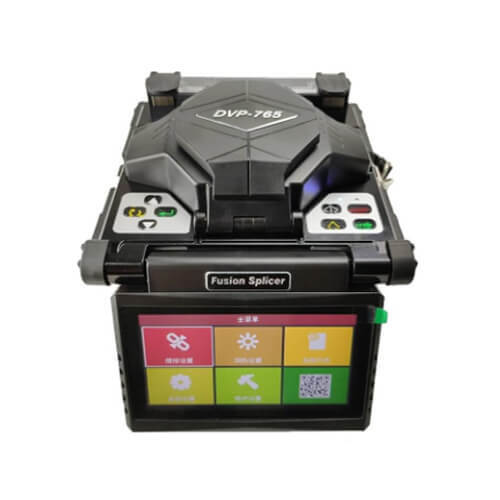

DVP-765 Fiber Optic Fusion Splicer Machine

Description

DVP-765 Fiber Optic Fusion Splicer Machine:

Model: DVP–765

Applicable Fibers: SMF(G.652)、MMF(G.651) 、DSF(G.653) 、NZDSF(G.655)、BIF(G.657）

Core Quantity: Single

Typical Splice Loss: 0.02dB(SMF)、0.01dB(MMF)、0.04dB(DSF)、0.04dB(NZDSF)、0.02dB(BIF)

Return Loss: ≥60dB

Tension Test: 2.0N（200gf）Standard

Material of Fiber Core: Quartz Fiber

Fiber Diameter: Cladding Diameter: 80-150 µm; Coating Diameter: 100 µm~3mm

Cleaved Length: 8~16mm

Lighting: Available

Estimated Splice Loss: Available

Splicing Time: 7 sec

Tube-heat Time: 20 sec

Fiber View & Magnification: X, Y, X/Y; 300X Magnification

Alignment: Core-Alignment, Cladding-Alignment, Auto

Electrode Life: 5000 arcs, can be extended by using an electrode grinder

Protection Sleeve Length: 20-60 mm, and other special sleeves

Splicing Program: 6 modes factory preset, 74 user-defined

Heating Program: 6 modes factory preset, 14 user-defined

Auto Heat: Yes

Data Storage: 8000 results, 200 splice images

Language: Chinese, English

Operating Environment: Temperature：-25～＋50℃； Humidity：0～95%RH：Altitude：0～5000m, Wind Protection, Max. wind velocity of 15m/s

Storage Temp: Temperature：-40～+80℃；Humidity：0～95%RH

Power Supply: AC Adapter, Input Voltage: 85～260V, 50/60Hz Battery：Voltage:12V, Capacity:6.5Ah

Battery Power: 260 times splicing and heating

Data Management: Can upload the result and screenshot to PC

Display: 4.3 color LCD

Dimension/Weight: 152（D）×142（W）×145（H）mm 1.57kg/1.98kg (with battery)
