Description

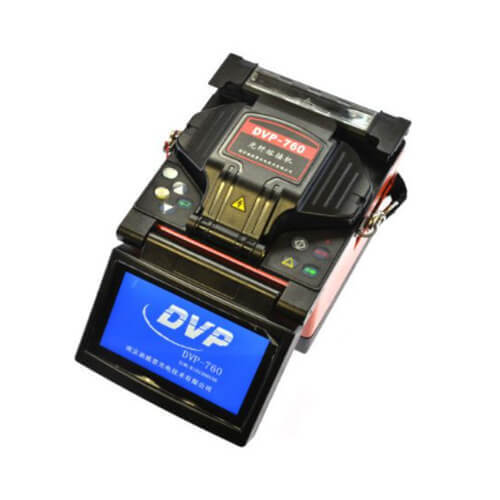

DVP-760 Splicer Machine:

Splicer Machine DVP-760 has a compact and lightweight design, fully automatic operation, 5000m altitude, splicer machine system test, color LCD monitor, pause function, storage 8000 groups of splice results, USB and DC, battery capacity up to 120 times of continuous splice and heat.

Applicable fibers

SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable, and connector.

Fiber cleaved length

8-22mm

Average splice loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Return loss

≥60dB

Fusion splicing time

7s

Heating time

20s

Tension test

2.0N(200gf)(Standard)

Protection sleeve length

20mm, 40mm, 60mm

Splice Program

5 groups of preset programs, 75 group of manual setting

Language

English, Chinese, Russian, Spanish, Portuguese.

Environment conditions

-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)

Storage environment

-40~ +80℃ (temperature) , 0~95%RH (humidity)

Power supply

AC adaptor: 85~260V input voltage

Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat

Dimensions/Weight

142(D)×122(W)×138(H)mm/1.95kg
