Pay cash discounted price and save
EMI available for 12 months on regular price: ৳4,950
| Main Features | ||
| Certification | 80 PLUS Bronze | |
| Efficiency (Approx.) | ≥88% Under Typical Load(50% Loading) | |
| Fan Size | 120mm | |
| Others | Hydro Bearing Active PFC + DC to DC Power Good Signal: 100-150ms Hold Up Time: ≥16ms(80% Load) Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO Regulatory: CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS Operation Temperature-0 - 40℃ Erp Regulation-ErP 2014 MTBF-40,000 Hours |
|
| Output | ||
| Modular Type | Non-Modular | |
| Total Power | 500W | |
| Connector | ||
| Main Power | 24(20+4)Pin × 1 | |
| PCI-E | PCI-E(6+2)Pin x 2 | |
| SATA | SATA x3 + 4Pin Peripheral x1 | |
| CPU | CPU(4+4)Pin x 1 | |
| Warranty Information | ||
| Manufacturing Warranty | 5-year warranty | |

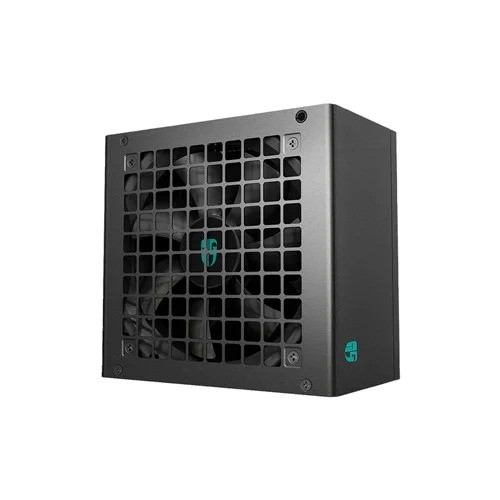

The DeepCool PF500X 500W 80 Plus Bronze Non-Modular ATX Power Supply delivers reliable performance and energy efficiency for mainstream PC builds. Designed to meet the ATX12V V2.52 standard, this PSU delivers a total output of 500W, making it ideal for gaming setups, office workstations, and general-purpose desktops.With 80 PLUS Bronze certification, the PF500X achieves up to 88% efficiency under typical 50% load conditions, reducing energy waste and heat generation. Its advanced Active PFC + DC to DC topology ensures stable voltage regulation and clean power distribution across all components, even during peak usage. The unit’s Power Good Signal ranges between 100–150ms, and its Hold Up Time of ≥16ms at 80% load guarantees uninterrupted performance during brief power fluctuations.Cooling is handled by a 120mm fan with a Hydro Bearing, engineered for quiet operation and extended lifespan. This thermal solution keeps internal temperatures in check while maintaining silent airflow, even under heavy load. The DeepCool PF500X operates efficiently within a wide temperature range of 0°C to 40°C, making it suitable for diverse environments.Safety is a top priority, and the PF500X includes comprehensive protection features: OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OCP (Over Current Protection), UVP (Under Voltage Protection), SIP (Surge & Inrush Protection), and NLO (No Load Operation). These safeguards protect your system from electrical anomalies and ensure long-term component health.From a compliance standpoint, the DeepCool PF500X meets global regulatory standards including CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, and BIS, and adheres to environmental directives such as ErP 2014. With a Mean Time Between Failures (MTBF) of 40,000 hours, this unit is built for durability and sustained performance.
