Pay cash discounted price and save
EMI available for 12 months on regular price: ৳23,500
| Main Feature | ||
| Type | Unmanaged PoE Network Switch |
|
| Port | 24x 100 Mbps Ethernet Port 2x 1 Gbps Optical Port |
|
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z |
|
| Transmission Method | Port 1-24: 24 × RJ45 10/100Mbps Port 25–26: 2 × RJ45 10/100/1000 Mbps (uplink) Port 25–26: 2 × SFP 1000 Mbps (uplink) (combo) |
|
| Data Transmission Rate | Switching Capacity: 8.8 Gbps Packet Forwarding Rate: 6.5472 Mpps Packet Buffer Memory: 4 Mbit |
|
| MAC Address Table | 8K | |
| Environment | Operating Temperature: –10°C to 55°C (14°F to 131°F) Operating Humidity: 10%–90% Storage Humidity: 5%–95% |
|
| Hardware Features | ||
| Power Supply | 100V AC–240V AC PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE PoE Budget: Port 1-2≤60W, Port 3-24≤30W, total≤240W PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) Long Distance PoE Transmission |
|
| Dimensions (L x W x H) | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 1 Year | |

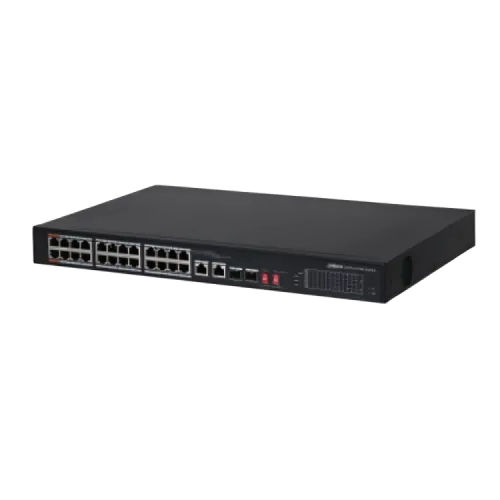

The Dahua PFS3226-24ET-240 26-Port Unmanaged PoE Switch provides effective power and data transmission for surveillance and IP-based applications. With 24 10/100 Mbps Ethernet ports and two uplink ports that enable 10/100/1000 Mbps RJ45 or 1000 Mbps SFP combo connectivity, this Dahua Layer 2 switch has a total switching capacity of 8.8 Gbps and a forwarding rate of 6.5472 Mpps. The Dahua PFS3226-24ET-240 26-Port Switch is designed to withstand severe network settings, with intelligent PoE technology that supports IEEE802.3af, IEEE802.3at, and Hi-PoE standards with a total PoE power budget of 240W. Ports 1 and 2 can offer up to 60W, while ports 3 through 24 can support up to 30W apiece, making it perfect for powering high-performance IP cameras and other PoE devices. The Dahua PFS3226-24ET-240 26-Port Unmanaged PoE Switch has advanced features such as PD Alive (PoE Watchdog), which restarts unresponsive devices to ensure ongoing functioning. It also enables long-distance PoE transmission and has port isolation capabilities to improve network security and prevent broadcast storms. With an 8K MAC address table and a 4 Mbit packet buffer capacity, it ensures seamless data flow even under heavy traffic. The Dahua PFS3226-24ET-240 PoE Switch performs dependably in temperatures ranging from -10°C to 55°C, making it suited for both indoor and semi-industrial installations. The Dahua PFS3226-24ET-240 is an unmanaged switch that does not require configuration. It has a standard internal power supply and consumes only 5W when idle, increasing to 240W at full PoE load.
