Pay cash discounted price and save
EMI available for 12 months on regular price: ৳69,000
| System | ||
| Main Processor | Industrial-grade processor |
|
| Operating System | Embedded Linux |
|
| Audio and Video | ||
| IP Camera Input | 64 | |
| Two-Way Talk | Yes | |
| Display | ||
| Interface | 2x HDMI 2x VGA |
|
| Resolution | 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
|
| Decoding Capacity | Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps |
|
| Multi-Screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
|
| Recording | ||
| Compression | Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression: G.711a; G.711u; PCM; G726 |
|
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
|
| Video Detection And Alarm | ||
| Trigger Event | Motion detection; privacy masking; local alarm |
|
| Video Detection | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception | |
| Alarm Input | YesFace detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map | |
| Relay Output | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email | |
| Playback And Backup | ||
| Playback Function | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | |
| Backup Mode | USB device and network |
|
| Search Mode | Up to 16 channels |
|
| Network | ||
| Ethernet Port | 2x Network Port (10/100/1000 Mbps Ethernet port, RJ-45) |
|
| Storage | ||
| Internal HDD | 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature | |
| eSATA | 1 | |
| Auxiliary Interface | ||
| USB | 3x USB (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
|
| RS232 | 1 | |
| RS485 | 1 | |
| Power | ||
| Power Supply | 100–240 VAC, 50-60 Hz |
|
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
|
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (14 °F to +131 °F) |
|
| Storage Conditions | –20 °C to +60 °C (–4 °F to +140 °F) |
|
| Construction | ||
| Dimensions | 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) |
|
| Net Weight | 4.74 kg (10.45 lb) |
|
| Gross Weight | 6.11 kg (13.47 lb) |
|
| Warranty | ||
| Warranty | 1-Year | |

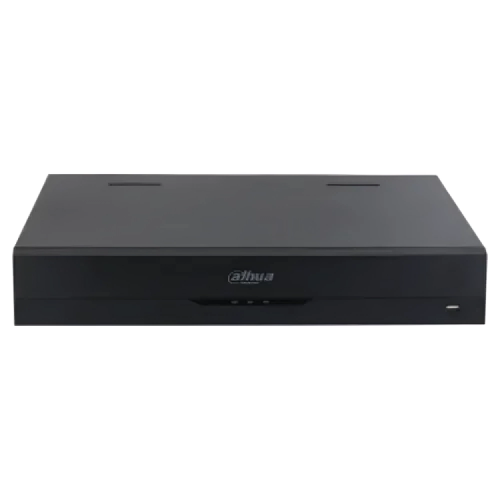

The Dahua NVR5464-EI is a powerful 64-channel 4HDD 1.5U WizSense NVR that includes advanced features for full video surveillance. Fueled by an embedded Linux operating system and an industrial-grade processor, it can decode MJPEG, H.265+, H.265, and Smart H.264+ codecs. This high-performance 64-channel 4HDD WizSense NVR, the Dahua NVR5464-EI, boasts a remarkable 384 Mbps incoming/recording/outgoing bandwidth and a maximum decoding capacity of 32 channels at 1080p@30 fps or 32 channels at 2MP@30 fps. These features enable reliable video processing. Notably, it enables N+M cluster configuration and AcuPick up to 16 channels. While AI by the camera covers face detection, recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting, AI by the recorder covers 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. With a 2.5 G total capacity, the unit can accommodate up to 20 face databases. Its metadata analysis covers non-motor vehicles, motor vehicles, and human features. The Dahua NVR5464-EI NVR is a flexible and strong option for large-scale video surveillance systems, featuring twin HDMI and VGA outputs, and full network connectivity, including ONVIF and mobile access. It is the perfect alternative for demanding security applications since it offers plenty of storage options, intelligent alarm connections, and alarm configurations. Construction of the Dahua NVR complies with certifications like FCC and CE-EMC, guaranteeing dependability and conformity with industry requirements.
Get specific details about this product from customers who own it.
