| System | ||
| Main Processor | Industrial-grade embedded processor |
|
| Operating System | Embedded Linux |
|
| Audio and Video | ||
| IP Camera Input | 32 Channels |
|
| Display | ||
| Interface | 1-ch VGA output 1-ch HDMI output USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
|
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
|
| Decoding Capacity | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 32-channel 720p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps; 32-channel D1p@30 fps |
|
| Multi-Screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
|
| Recording | ||
| Compression | Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression G.711a; G.711u; PCM; G726 |
|
| Record Rate | General, motion detection; intelligent; alarm |
|
| Others | Multi-channel Playback Up to 16 channels Backup Method USB device and network |
|
| Video Detection And Alarm | ||
| Trigger Event | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
|
| Video Detection | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | |
| Relay Output | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
|
| Playback And Backup | ||
| Playback Function | Instant playback, general playback, event playback, tag playback, smart playback |
|
| Backup Mode | USB device |
|
| Search Mode | General, motion detection; intelligent; alarm |
|
| Network | ||
| Ethernet Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
| Maximum User Access | Chrome; IE9 and later; Firefox |
|
| Smart Phone | Android; iOS |
|
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register | |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
|
| Storage | ||
| Internal HDD | 4 SATA ports, up to 16 TB |
|
| Auxiliary Interface | ||
| USB | 2x (1 front USB 2.0 port, 1 rear USB 3.0 port) |
|
| RS232 | 1x channel used to debug and pass through serial data |
|
| RS485 | 1x channel, used to control PTZ, and it supports multiple protocols |
|
| Power | ||
| Power Supply | Single, 100 V–240 V AC, 50 Hz–60 Hz |
|
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
|
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (+14 °F to +131 °F) |
|
| Storage Conditions | -20 °C to +60 °C (-4 °F to 140 °F) |
|
| Construction | ||
| Dimensions | 440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") (W × D × H) |
|
| Net Weight | 4.25 kg (10.63 lb) |
|
| Gross Weight | 6.35 kg (14.00 lb) |
|
| Third Party Support | ||
| Third Party Support | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
|
| Warranty | ||
| Warranty | 1 Year |
|

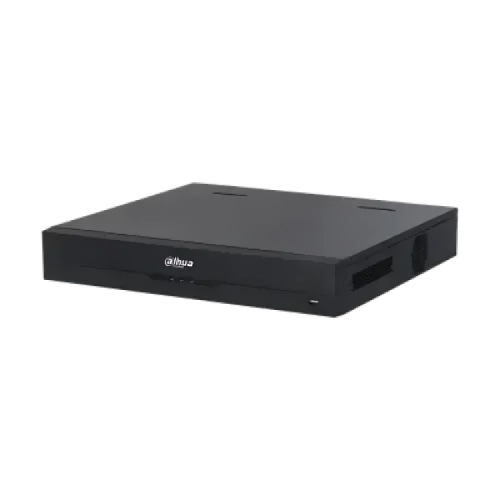

The Dahua NVR4432-EI 32 Channel WizSense Network Video Recorder (NVR) is a device that can record and store video and audio data from up to 32 network cameras. This device can provide you with a high-quality and intelligent video surveillance solution, as it supports various features and functions to enhance your security and efficiency. The Dahua NVR4432-EI 32-Channel Network Video Recorder features a powerful processor and an embedded Linux operating system, which can deliver fast and stable performance for various applications. The Dahua NVR device also supports multiple video formats, such as Smart H.265+; H.265; Smart H.264+; H.264; MJPEG, which can reduce bandwidth and storage consumption and improve video quality. The device also supports multiple audio formats, such as G.711a; G.711u; PCM; and G726, which can provide clear and crisp sound. The Dahua NVR4432-EI 32 Channel NVR also features a large storage capacity and a flexible backup option, as it has four SATA ports that can support up to 16 TB of hard disk drive each. The device also has a USB port that can support USB devices for backup. The Dahua NVR4432-EI also supports local HDD and network storage methods, which can provide you with more choices and convenience. The Dahua 32 Channel Network Video Recorder (NVR) also features a range of connectivity options and interfaces, such as two RJ-45 Ethernet ports, one HDMI port, one VGA port, one RCA input, one RCA output, 16 alarm inputs, four alarm outputs, one RS-232 port, one RS-485 port, and one micro SD card slot. These ports and interfaces can allow you to connect the device to various devices and accessories, such as monitors, speakers, microphones, cameras, sensors, etc.
