| System | ||
| Main Processor | Embedded Processor |
|
| Operating System | Embedded LINUX |
|
| Display | ||
| Interface | Web/operating in local GUI |
|
| Resolution | 1080P | |
| Decoding Capacity | 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or 2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4–ch@1080P(30FPS) |
|
| Multi-Screen Display | 1 / 4 | |
| Recording | ||
| Compression | Audio: PCM/G711A/G711U/G726/AAC | |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
|
| Record Rate | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording | |
| Video Detection And Alarm | ||
| Video Detection | Yes | |
| Alarm Input | Yes | |
| Playback And Backup | ||
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off | |
| Backup Mode | USB device | |
| Network | ||
| Ethernet Port | 1 RJ–45 port (10/100 Mbps) |
|
| Smart Phone | IDMSS (iOS), GDMSS (Android) |
|
| Storage | ||
| Internal HDD | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature | |
| Auxiliary Interface | ||
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
|
| Power | ||
| Power Supply | DC12V, 1.5A |
|
| Power Consumption | The total output of NVR is ≤ 10W (without HDD) |
|
| Component Environment | ||
| Storage Conditions | Storage Temperature 0°C to 40°C (+32°F to +104°F) Storage Humidity 30%~85% |
|
| Construction | ||
| Dimensions | Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H) Box Dimensions: 87 mm×331 mm×312 mm (W × L × H) |
|
| Net Weight | 0.81 kg (1.79 lb) |
|
| Gross Weight | 1.38 kg (3.04 lb) |
|
| Warranty | ||
| Warranty | 01-Year Warranty |
|

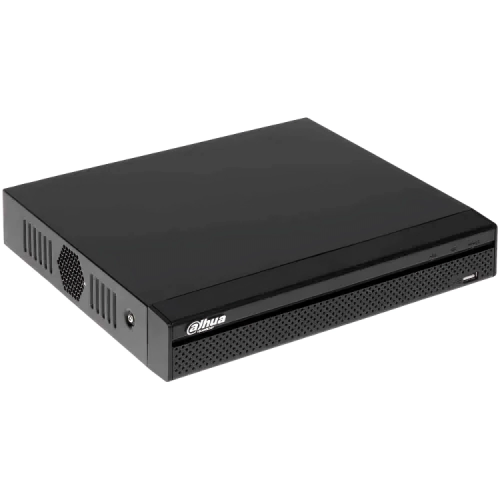

The Smart 4-Channel Compact 1U Lite H.265 Network Video Recorder in the Dahua NVR1104HS-S3/H 4-Channel Network Video Recorder (NVR). This network video recorder offers low-cost capabilities such as local live view, multi-screen display, real-time storage on a local hard drive, mouse operation, and remote management and control. It has a maximum input bandwidth of 80Mbps, preview and playback resolutions of up to 8Mp, and 1x HDMI and 1x VGA simultaneous video 1080P output. The Dahua NVR Smart H.265+ is a high-performance H.265 codec with scene-adaptive encoding. When compared to regular H.265 video compression, the Dahua NVR Smart H.265+ technology reduces bit rate and storage requirements by up to 85%. It contains features like motion detection, video loss, privacy masking, a PIR alarm, and an IPC alarm. The Dahua NVR1104HS-S3/H 4-Channel Network Video Recorder (NVR) has 01-year warranty.
