| General | ||
| Casing | Plastic |
|
| Dimensions | Φ97.1 mm × 93.0 mm (Φ3.82″ × 3.66″) |
|
| Weight | 0.17 Kg (0.37lb) |
|
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Operating Conditions | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) |
|
| Storage Conditions | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) |
|
| Power Supply | 12V ±30% DC |
|
| Power Consumption | Max 2.6 W (12V DC, IR on) |
|
| Camera | ||
| Image Sensor | 1/2.7 inch CMOS |
|
| Effective Pixels | 2MP |
|
| Scanning System | Progressive |
|
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
|
| Minimum Illumination | 0.02 Lux/F1.9, 30IRE, 0 Lux IR on |
|
| S/N Ratio | >65dB |
|
| IR Distance | 25 m (82.0 ft) |
|
| Video | ||
| Resolution | 1920(H)×1080(V) |
|
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
| Day/Night | Auto switch by ICR |
|
| BLC Mode | BLC/HLC/DWDR |
|
| Gain Control | Auto; manual |
|
| Noise Reduction | 2D NR |
|
| Interface | ||
| Audio Interface | Built-in mic (-A) |
|
| Lens | ||
| Lens Type | Fixed -Focal |
|
| Mount Type | M12 |
|
| Focal Length | 2.8mm; 3.6mm |
|
| Max Aperture | 2.8 mm: F1.9 3.6 mm: F2.0 |
|
| Angle of View | 2.8 mm: H: 101°; V: 54° ; D: 119° 3.6 mm: H: 84°; V: 45°; D: 100° |
|
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) |
|
| Warranty Information | ||
| Warranty | 1 Year |
|

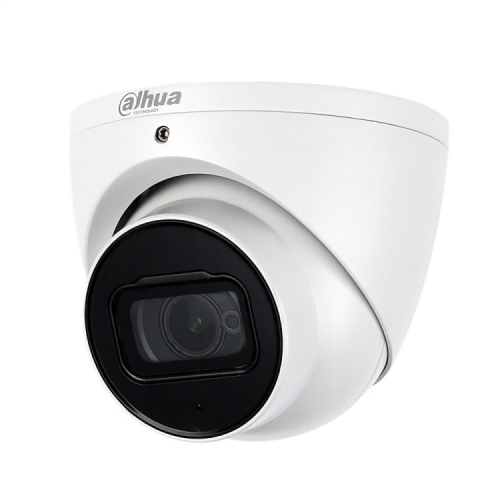

The Dahua HAC-HDW1200TRQP-A is a 2MP HDCVI IR Eyeball Camera with a built-in mic. It has a maximum frame rate of 30fps at 1080P resolution and is quick to install. The camera is switchable between CVI/CVBS/AHD/TVI formats and has a fixed 3.6mm lens (with optional 2.8mm or 6mm lenses). It also features Smart IR with a maximum IR length of 40m. This camera is part of Dahua’s Lite Series and offers high-quality video surveillance in an easy-to-install package. Its quick-to-install design saves installation time and its switchable output format allows for flexibility in system design. The built-in mic allows for audio recording and the Smart IR technology ensures clear night vision up to 40m away.
