| System | ||
| Main Processor | Embedded Processor |
|
| Operating System | Embedded LINUX |
|
| Audio and Video | ||
| IP Camera Input | 4+1 channels, each channel up to 2MP |
|
| Two-Way Talk | Reuse audio in/out, RCA |
|
| Display | ||
| Interface | 1 HDMI; 1 VGA |
|
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
| Multi-Screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
|
| Recording | ||
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
|
| Resolution | 1080N; 720p; 960H; D1; CIF |
|
| Record Rate | Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps) |
|
| Bit Rate | 32 kbps–4096 kbps per channel |
|
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
|
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
|
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
| Playback And Backup | ||
| Sync Playback | 1/4 | |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom | |
| Backup Mode | USB Device/Network |
|
| Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to second) |
|
| Network | ||
| Interface | 1 RJ-45 Port (100 Mbps) |
|
| Maximum User Access | 128 users | |
| Smart Phone | iPhone; iPad; Android |
|
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Interoperability | ONVIF 16.12, CGI Conformant |
|
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity |
|
| Auxiliary Interface | ||
| USB | 2 USB ports (USB 2.0) |
|
| Power | ||
| Power Supply | DC 12 V/1.5 A |
|
| Power Consumption | < 7 W | |
| Component Environment | ||
| Operational Conditions | –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) |
|
| Storage Conditions | –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) |
|
| Construction | ||
| Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') |
|
| Net Weight | 0.57 kg (1.25 lb) |
|
| Gross Weight | 1.08 kg (2.38 lb) |
|
| Warranty | ||
| Warranty | 1 Year | |
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.

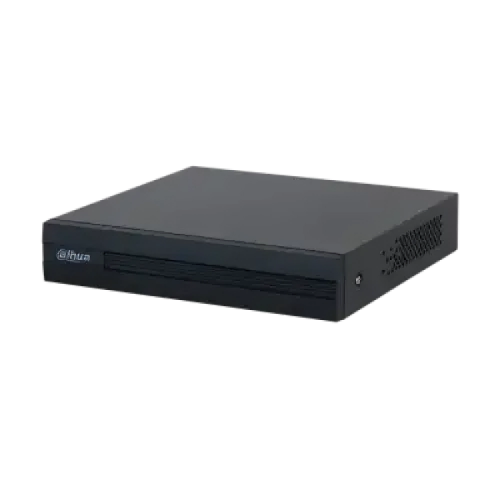

The DAHUA DH-XVR1B04-I 4-Channel Digital Video Recorder is listed at Computer Vision BD for ৳3,150, with a 1 Year warranty and is currently out of stock, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
