Pay cash discounted price and save
EMI available for 12 months on regular price: ৳8,500
| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps |
|
| Antenna | 4 × Fixed Antennas | |
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Wireless | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× Fixed 5 GHz Antenna Gain Max: 7.8dBi 2.4 GHz Antenna Gain Max: 5.2dBi FEM or PA/LNA: 5 GHz: 2× External 2.4 GHz: 2× External Beamforming: True Range Performance: Max: 220 m (722 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|
| Network Standard | QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ Firewall: SPI Firewall DoS Protection Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough |
|
| Others | CPU: Chipset: BCM6764 CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7 Memory/Storage: Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L 4-Stream Dual-Band Wi-Fi 7 Max Capacity: 512 200 Connected Devices Recommended Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True Covers 130 m² (1,400 ft²) Cudy Mesh, VPN Server and Client Cudy App, Cloud Control, VPN Server and Client Reliability: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing General: Operation Modes: Wi-Fi Router Access Point Multi-Band Backhaul: True WAN Mode: DHCP Static IP PPPOE PPTP L2TP System: LED Control: Ture Local Control Method: Config Web Page App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update App (Over the Air) Online Update Reliability: Timed Reboot Backup and Restore Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log Management All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter |
|
| Interface | Gigabit RJ45 Ports: 4 Ethernet Notes: 1× WAN port, the rest are LAN ports LED: System Internet 2.4 GHz Wi-Fi 5 GHz Wi-Fi WAN LAN Physical Buttons: WPS Button Reset Button Power Input: DC Jack |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC Max Power Consumption (W): 8.5W |
|
| Physical Dimension | ||
| Dimension | 209×48×220.4 mm 8.23×1.89×8.68 inches |
|
| Color | White | |
| Weight | 339.8 g (11.99 oz.) | |
| Manufacturer warranty | ||
| Warranty | 1 year | |

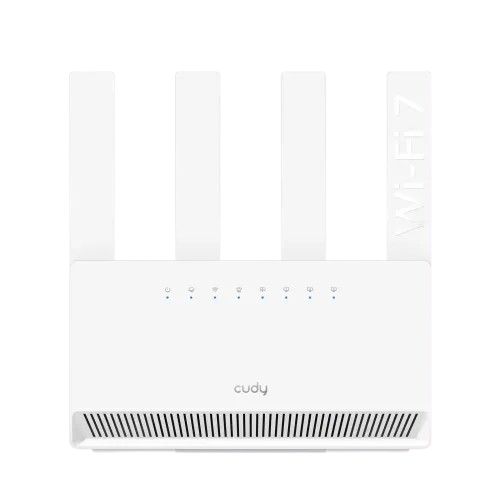

The Cudy WR3600E BE3600 Gigabit Mesh Wi-Fi 7 Router is a high-performance networking solution designed to deliver ultra-fast speeds and seamless connectivity. Powered by a 2.0 GHz Quad-Core ARM Cortex-A7 processor with the Broadcom BCM6764 chipset, the Cudy WR3600E Gigabit Router ensures reliable performance even under heavy network loads. With Wi-Fi 7 technology, this router supports 4K-QAM modulation, 160 MHz channel width, and Multi-Link Operation (MLO) for superior efficiency. The Cudy WR3600E BE3600 Mesh Router provides dual-band wireless speeds of 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, utilizing 2×2 MIMO streams and beamforming to enhance coverage up to 130 m² (1,400 ft²). Its four high-gain fixed antennas (7.8dBi for 5 GHz, 5.2dBi for 2.4 GHz) and external FEM for both bands ensure strong, stable signal transmission. The Cudy WR3600E BE3600 Wi-Fi 7 Router includes four Gigabit RJ45 ports (one WAN, three LAN) for high-speed wired connections. Security and network management are robust, with QoS per-user rate limiting, SPI firewall, DoS protection, VPN passthrough, and support for WireGuard, OpenVPN, IPsec, and ZeroTier VPNs. The Cudy WR3600E Gigabit Mesh Router allows easy setup and control through a web interface, mobile app, or HTTPS remote access, with features like Wi-Fi scheduling, MAC filtering, and parental controls. The Cudy WR3600E Gigabit Wi-Fi 7 Router is FCC and CE certified, operates at a maximum power consumption of 8.5W, and is designed for desktop placement with dimensions of 209×48×220.4 mm and a weight of 339.8 g. The Cudy WR3600E Router is an ideal choice for homes and businesses, offering next-generation Wi-Fi performance with exceptional speed, security, and coverage.
