| Main Feature | ||
| Type | Gigabit Desktop Switch |
|
| Port | 5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
|
| Network Standard | 802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control |
|
| Transmission Method | Store-and-Forward |
|
| Data Transmission Rate | Switching Capacity: 10 Gbps Max Forwarding Rate: 7.44 Mpps Packet Buffer: 3 Mbit Jumbo Frame: 15 KB |
|
| MAC Address Table | 2K | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Hardware Features | ||
| LED | Power, Link/Act LEDs |
|
| Power Supply | DC 5 V / 0.55 A (Adapter) |
|
| Dimensions (L x W x H) | 88×52.5×24 mm 3.46×2.07×0.94 inches |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 1 Year | |

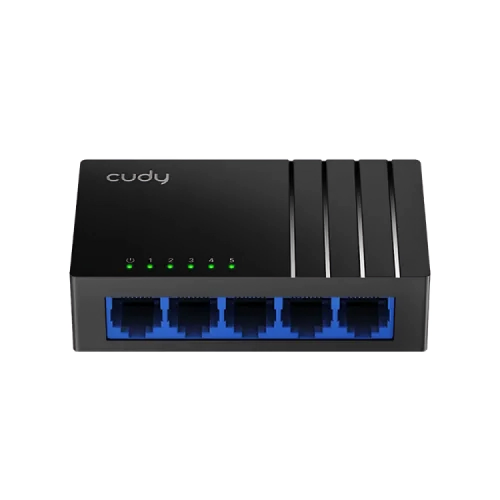

The Cudy GS105D 5-Port Gigabit Desktop Switch provides high-speed connectivity via 5 10/100/1000 Mbps Ethernet ports that feature auto-negotiation and auto-MDI/MDIX for simple integration into a variety of network configurations. Utilizing Cat 5e or higher standard cables, this switch's maximum transmission distance of 140 meters guarantees dependable data flow throughout your network. It prevents packet loss by using a 3 Mbit packet buffer and IEEE 802.3x flow control, ensuring uninterrupted data delivery even in situations with heavy demand. Because of its power-saving features, which save electricity when ports are idle, it is both economical and environmentally beneficial. The Cudy GS105D 5-Port Gigabit Desktop Switch offers flexible deployment options by supporting wall-mounting and desktop installations. It supports multiple network media types, including UTP Cat 3, 4, 5, 5e, 6, and higher standard cables, and complies with industry standards including 802.3i, 802.3u, and 802.3ab. It guarantees effective management of network traffic with a jumbo frame size of 15 KB and a MAC address table capacity of 2K. With a switching capability of 10 Gbps and a maximum forwarding rate of 7.44 Mpps, the Cudy GS105D 5-Port Gigabit Desktop Switch can handle the demands of contemporary networks. It has a robust ABS plastic housing and uses only 2 watts of power, so energy expenses are kept to a minimum. The Cudy GS105D 5-Port Gigabit Desktop Switch is a dependable and adaptable option for small to medium-sized network environments thanks to its compact dimensions and effective heat dissipation.
