Pay cash discounted price and save
EMI available for 12 months on regular price: ৳14,000
| Main Feature | ||
| Type | Managed Switch | |
| Port | 24 x 10/100/1000Mbps Gigabit Ethernet |
|
| Transmission Method | Store-and-Forward | |
| Data Transmission Rate | Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit |
|
| MAC Address Table | 8192 | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Hardware Features | ||
| Interface | Gigabit RJ45 Ports: 24 Extend Mode Ports: #1~#22 VLAN Mode Ports: #1~#22 |
|
| LED | Power Speed/Link/ACT of Each Ethernet Port |
|
| Power Supply | Power Methods: AC AC: 90~260V 50/60Hz Max Power Consumption: 7.8W Idle Power Consumption: 4.5W |
|
| Dimensions (L x W x H) | 440×180×44 mm 17.32×7.09×1.73 inches |
|
| Weight | 1690 g (59.61 oz.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 1-Year | |

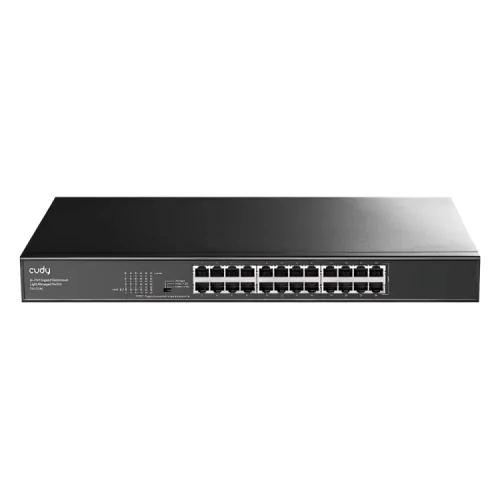

The Cudy GS1024E 24-Port Gigabit Switch is designed for commercial, enterprise, and sophisticated residential networks. With 24 Gigabit Ethernet ports, it offers dependable and fast data transfer, with a maximum switching capacity of 48 Gbps and a forwarding rate of 35.712 Mpps. This Cudy Managed Switch provides both web management and SNMP. The Cudy GS1024E 24-Port Network Switch has VLAN capabilities, including 802.1Q, MTU, voice, and port-based VLANs, allowing users to separate networks for better security and traffic management. Advanced QoS capabilities like 802.1p, DSCP, and port-based QoS prioritize vital data, resulting in smooth video conferencing, VoIP conversations, and gaming performance. The Cudy GS1024E 24-Port Gigabit Managed Switch supports STP/RSTP protocols and has critical Layer 2 management capabilities like as port mirroring, static aggregation, and loop prevention. IGMP and DHCP snooping improve multicast performance while limiting unwanted access. The switch has three preset modes—Managed, VLAN, and Extend—that may be configured using a physical DIP switch for easy setup. The Cudy GS1024E 24-Port Gigabit Managed Switch features extend mode, which allows data transmission up to 250 meters on ports 1-22 at 10 Mbps, making it suitable for surveillance systems. The switch performs huge data transfers effectively, thanks to its 8,192-entry MAC address table, 4 Mbit packet buffer, and jumbo frame capabilities of up to 15 KB. The Cudy GS1024E 24-Port Switch uses energy-saving technology and supports IEEE 802.3az protocols, which reduce power usage based on network activity. It uses an AC power input of 90-260V, 50/60Hz, and has a maximum power consumption of 11W and an idle usage of 6.8W.
