| Main Feature | ||
| Type | Unmanaged Gigabit Switch |
|
| Port | 16× GbE with 802.3at/af Mode A PoE |
|
| Network Standard | 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3x Flow Control 802.3af PoE 802.3at PoE |
|
| Transmission Method | Store-and-Forward |
|
| Data Transmission Rate | Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. Max Switching Capacity: 40 Gbps |
|
| MAC Address Table | 2048 | |
| Environment | Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing |
|
| Hardware Features | ||
| Interface | Physical Buttons: Default/Extend DIP switch 1.25G SFP Slots: 2 Gigabit RJ45 Ports: 2 Gigabit RJ45 PoE Ports: 16 Max Power on a Single PoE Port: 30W PoE Port Notes: PoE ports support 802.3at/af standards. Extend Mode Ports: #9~#16 |
|
| LED | Power, Speed/Link/ACT of Each Ethernet Port, Extend Status Power Input: AC Inlet |
|
| Power Supply | Power Methods: AC AC: 100-240V 50/60Hz Max Power Consumption: 200W Max Power Excluding PoE: 10W |
|
| Dimensions (L x W x H) | 320×207×44 mm 12.6×8.15×1.73 inches |
|
| Weight | 1789 g (63.11 oz.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 01-Year | |

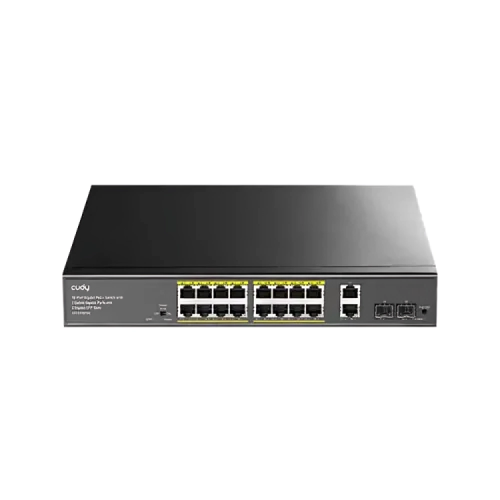

The Cudy GS1018PS2 16-Port Gigabit PoE Switch is a high-performance unmanaged network switch ideal for small and medium-sized businesses requiring reliable Gigabit connectivity with Power over Ethernet (PoE) support. The Cudy GS1018PS2 Gigabit Switch features 16 Gigabit PoE ports compliant with 802.3af/at standards, providing up to 30W per port, making it perfect for powering IP cameras, VoIP phones, and wireless access points directly through the network cable. Additionally, it offers 2 uplink Gigabit RJ45 ports and 2 SFP slots for flexible fiber or copper connections, allowing seamless network expansion. With a switching capacity of 40 Gbps and a forwarding rate of 29.76 Mpps, the Cudy GS1018PS2 16-Port Switch ensures smooth data transmission under heavy network traffic. Ports #9–#16 support 250-meter transmission in Extend Mode, enabling long-distance connectivity for remote devices. Equipped with a built-in 200W power supply, the Cudy GS1018PS2 Network Switch efficiently delivers PoE power, while the AC input supports 100–240V at 50/60Hz. Its store-and-forward transmission method guarantees reliable packet delivery, and it supports network standards including 802.3i/10BASE-T, 802.3u/100BASE-TX, 802.3ab/1000BASE-T, 802.3z/1000BASE-X, and 802.3x flow control. The switch maintains a MAC address table of 2048 entries and features LED indicators for power, port speed/link/activity, and Extend Mode status, simplifying network monitoring. Compact yet durable, it measures 320×207×44 mm (12.6×8.15×1.73 inches) and weighs 1.789 kg (63.11 oz), operating reliably in temperatures from 0–40 °C and humidity levels of 10–90% non-condensing. Overall, the Cudy GS1018PS2 16-Port Gigabit PoE Switch is a versatile, reliable, and high-capacity solution for powering and expanding modern Ethernet networks.
