Pay cash discounted price and save
EMI available for 12 months on regular price: ৳5,600
| Main Feature | ||
| Type | Unmanaged Gigabit Switch |
|
| Port | 16 x 10/100/1000Mbps Gigabit Ethernet |
|
| Network Standard | IEEE 802.3 IEEE 802.3u IEEE802.3x IEEE 802.3ab |
|
| Transmission Method | Store-and-Forward |
|
| Data Transmission Rate | Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports. Max Switching Capacity: 32 Gbps |
|
| MAC Address Table | 8192 | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Hardware Features | ||
| Interface | Gigabit RJ45 Ports: 16 Extend Mode Ports: #1~#14 VLAN Mode Ports : #1~#14 LED: Power, Speed/Link/ACT of Each Ethernet Port Power Input: AC Inlet Physical Buttons: VLAN/Default/Extend DIP Switch |
|
| LED | Power Speed/Link/ACT of Each Ethernet Port |
|
| Power Supply | Power Methods: AC AC: 90~260V 50/60Hz Max Power Consumption: 15W |
|
| Dimensions (L x W x H) | 200×118×44 mm 7.87×4.65×1.73 inches |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 01-Year | |

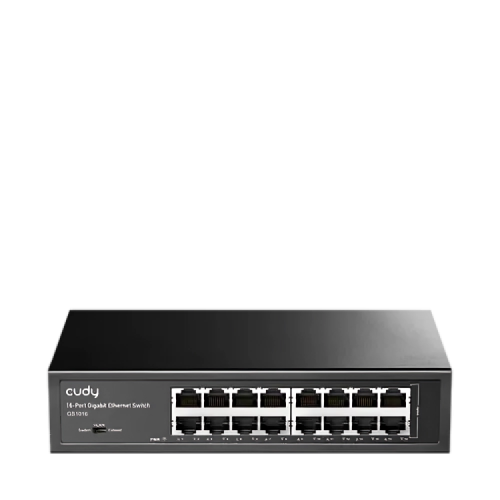

The Cudy GS1016 16-Port Gigabit Unmanaged Switch is a dependable and efficient networking solution that includes several features geared for great performance and flexibility in deployment. The Cudy GS1016 16-Port Gigabit Switch features 16 Gigabit RJ45 ports, including Extend Mode Ports (1-14) for extended transmission lengths and VLAN Mode Ports (1-14) for network segmentation. This Network switch has a VLAN/Default/Extend DIP switch for easy mode adjustment, ensuring that it adapts to varied situations easily. The LED indicators for each port indicate power, speed, and activity, and the power input is delivered via an AC inlet (90~260V, 50/60Hz), with a max power usage of only 15W, making it energy-efficient. The Cudy GS1016 Switch can handle copper speeds of up to 100 meters at 10 Mbps on Cat. 3 cables and 100 metres at Gigabit on Cat. 5e or higher lines. Notably, Extend Mode ports support a maximum transmission distance of 250 meters at 10 Mbps. The maximum switching capacity of 32 Gbps assures efficient data transmission, and the 8192 MAC address table allows it to easily handle a huge network. The switch also supports a variety of 802.3 protocols, including 802.3x Flow Control and IGMP Snooping, as well as Loop Prevention for improved dependability. It provides versatile installation choices, including desktop and rackmount configurations, making it suited for a wide range of scenarios. The Cudy GS1016 16-Port Unmanaged Switch's metal housing allows it to work in temperatures ranging from 0°C to 40°C and -40°C to 70°C for storage. This, along with a non-blocking switching design and features like as port isolation in VLAN mode, results in seamless, full-wire-speed data forwarding, making the Cudy GS1016 16-Port network Switch a perfect solution for anybody looking for high-performance, dependable, and energy-efficient network management. The Cudy Switch is an excellent alternative for dependable and economical network solutions, offering constant performance for both home and commercial usage.
