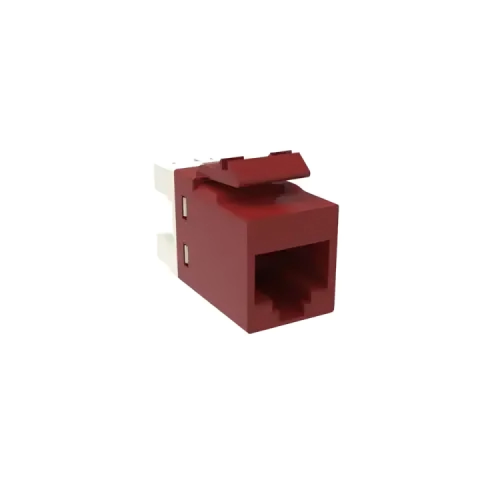

CommScope SL110-6-RD Cat 6 RJ45 Modular Jack

Description

CommScope SL110-6-RD Cat 6 RJ45 Modular Jack Best Price in Bangladesh | Computer Vision BD

The CommScope SL110-6-RD Cat 6 RJ45 Modular Jack is a high-performance, adaptable connectivity solution for unshielded cable types, including solid and stranded conductors. This modular jack guarantees better network performance with ISO/IEC 11801 Class E and ANSI/TIA Category 6 transmission requirements. It has an inverted jack face and a red color-coded outlet that work with panels and faceplates from the SL Series. A minimum of 200 punchdowns utilizing the IDC termination type and the SL Termination tool assist the termination process. Its sturdy construction permits remote powering, complies completely with IEEE 802.3bt Type 4 (90 W) applications, and keeps up its durability even after 3000 plug-to-jack mating cycles. It also meets IEC 60512-99-002 criteria for unmating under electrical load conditions. The dielectric withstand voltage specifications of 1,500 Vac @ 60 Hz (conductive surface) and 1,000 Vac @ 60 Hz (contact-to-contact) are also satisfied by this CommScope SL110-6-RD Cat 6 RJ45 Modular Jack. The SL110-6-RD has solid conductor gauges ranging from 24 to 22 AWG and stranded gauges ranging from 26 to 24 AWG. Compatible cable diameters are up to 5.8 mm, while insulated conductor diameters are up to 1.45 mm. With a minimum insulation resistance of 500 MOhm and a maximum contact resistance of 100 mOhm with a range of 20 mOhm, it demonstrates exceptional qualities. The CommScope SL110-6-RD Cat 6 RJ45 Modular Jack is made of polycarbonate and features contacts made of beryllium copper plated with 1.27 µm of gold. This construction guarantees longevity and dependable connectivity.
