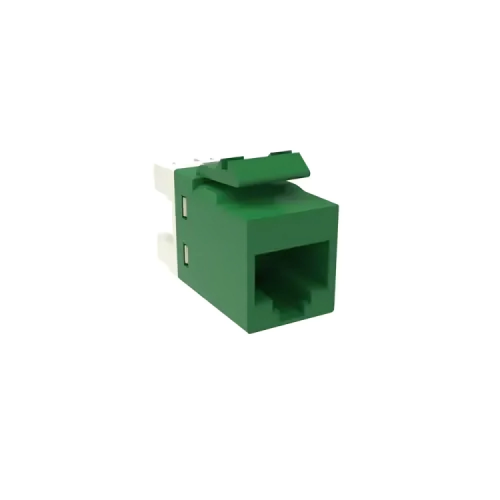

CommScope SL110-6-GN Cat 6 RJ45 Modular Jack

Description

CommScope SL110-6-GN Cat 6 RJ45 Modular Jack Best Price in Bangladesh | Computer Vision BD

The CommScope SL110-6-GN Cat 6 RJ45 Modular Jack is capable of accommodating wires that are stranded or solid. This modular jack guarantees better network performance with ISO/IEC 11801 Class E and ANSI/TIA Category 6 transmission requirements. It has an inverted jack face and a red color-coded outlet that work with panels and faceplates from the SL Series. A minimum of 200 punchdowns utilizing the IDC termination type and the SL Termination tool assist the termination process. Its sturdy design, which complies fully with IEEE 802.3bt Type 4 (90 W) applications and IEC 60512-99-002 unmating under electrical load standards, allows the CommScope SL110-6-RD Cat 6 RJ45 Modular Jack to handle remote powering and retain durability even after 3000 plug-to-jack mating cycles. The dielectric withstand voltage specifications of 1,500 Vac @ 60 Hz (conductive surface) and 1,000 Vac @ 60 Hz (contact-to-contact) are also satisfied by this CommScope SL110-6-GN Cat 6 RJ45 Modular Jack. The SL110-6-GN provides solid conductor gauges from 24 to 22 AWG and stranded from 26 to 24 AWG, with appropriate cable sizes up to 5.8 mm and insulated conductor diameters up to 1.45 mm. With a minimum insulation resistance of 500 MOhm and a maximum contact resistance of 100 mOhm with a range of 20 mOhm, it demonstrates exceptional qualities. The CommScope SL110-6-GNCat 6 RJ45 Modular Jack is made of polycarbonate and features contacts made of beryllium copper plated with 1.27 µm of gold. This construction guarantees longevity and dependable connectivity.
