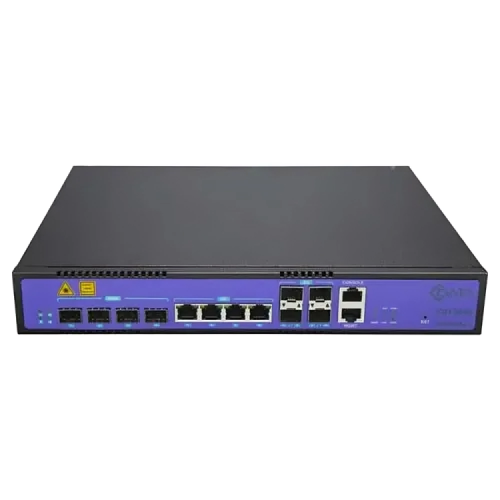

C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT

Description

C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT Best Price in Bangladesh | Computer Vision BD

The C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT is a high-performance optical line terminal designed for stable and scalable EPON networking. Built in a 1U 19-inch standard rack box with dimensions of 306 × 266 × 44 mm and weighing 2.6 kg, this compact device ensures easy deployment in data centers and ISP networks. The C-Data FD1304S-B1-PDA0 supports EPON (IEEE 802.3ah) technology with 4 PON ports, each delivering a 1:64 splitting ratio and a 20KM transmission distance, making it ideal for large-scale fiber access projects. For uplink performance, it integrates 4 × 10/100/1000M auto-negotiation Ethernet ports and 4 × 10G SFP+ interfaces, powered by a 98G backplane bandwidth for efficient data transfer. The C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT is equipped with a 100/1000BASE-Tx out-band Ethernet management port and a CONSOLE local port, ensuring flexible management options. Its PON ports provide a symmetrical 1.25Gbps rate using SC/UPC interfaces over 9/125μm single-mode fiber, with optical specifications including a 1490nm forwarding wavelength, 1310nm receiving wavelength, PX20+ transmission power (2~5.5 dBm), -28dBm receiving sensitivity, and -8dBm saturation power. Power supply flexibility is enhanced with support for 100V ~ 240V AC (47–63Hz) or -36V ~ -72V DC. Built for durability, the C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT operates reliably in temperatures from -15℃ to 50℃, stores safely from -40℃ to 85℃, and functions in 5–90% non-condensing humidity, making it an excellent choice for ISPs and enterprises deploying next-generation EPON networks.
