Pay cash discounted price and save
EMI available for 12 months on regular price: ৳41,770
| Primary Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 3 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | 8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II |
|
| Maximum Memory | 192GB |
|
| Graphics | ||
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin Front Panel System header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
|
| Others Features | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

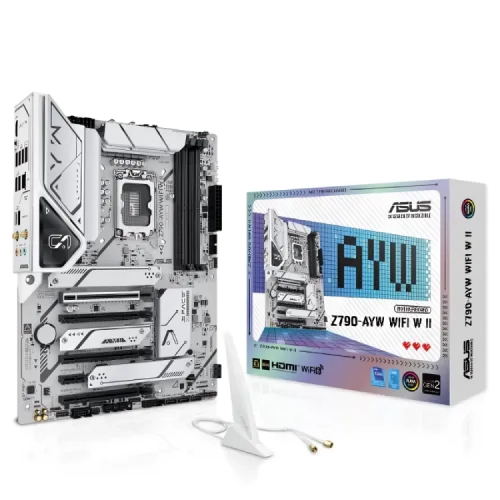

The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard is a high-performance platform that supports Intel's newest 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron CPUs. The ASUS motherboard employs the powerful Intel Z790 chipset. It supports Intel Turbo Boost Technology 2.0 and 3.0, allowing for more powerful and efficient computing. It has four DDR5 DIMM slots and can support up to 192GB of high-speed memory at rates of up to 8000MHz (OC). Intel XMP and OptiMem II technology are also included for improved memory reliability and performance. The ASUS Z790-AYW WIFI W II motherboard has numerous expansion slots, including a PCIe 5.0 x16 slot and several PCIe 4.0 and 3.0 slots for sophisticated graphics and peripherals. Storage options are extensive, with three M.2 slots and four SATA 6Gb/s connectors that allow PCIe and SATA RAID setups. With Realtek 2.5Gb Ethernet and ASUS LANGuard protection, networking is quick and dependable. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard's integrated Wi-Fi 6 and Bluetooth 5.3 provide high-speed wireless communication over dual 2.4/5GHz bands. The rear I/O panel has eight USB ports, including USB 10Gbps Type-A and Type-C, HDMI, audio jacks, and a BIOS FlashBack button for simple firmware changes. The ASUS Z790-AYW WIFI W II ATX motherboard's front panel features nine more USB ports, including a USB 10Gbps Type-C header. The audio is powered by a Realtek 7.1 surround sound codec with superior capacitors and shielding for immersive sound. The ASUS WIFI motherboard offers complete RGB customization via Aura Sync and has numerous Gen 2 addressable RGB connectors. Cooling is improved with multiple fan headers, AIO pump support, and dedicated VRM and M.2 heatsinks. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard also includes ASUS-exclusive innovations like Q-Latch, Q-DIMM, Q-LED, and a pre-installed I/O shield for easy installation. It is designed in the ATX form factor and runs Windows 10 and 11, offering it a future-proof base for any performance-driven PC build.
