| Primary Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
|
| Chipset | INTEL B860 |
|
| Form Factor | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot |
|
| M.2 Socket | 3x M.2 |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | Maximum Memory Capacity 256GB |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
|
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | SATA RAID 0/1/5/10 |
|
| Audio | 5 x Audio jacks |
|
| Internal I/O Ports | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| Others Features | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty |
|

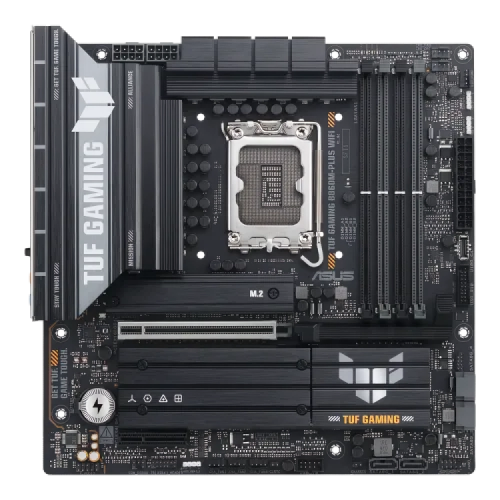

The Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard is designed for gamers and PC enthusiasts who want exceptional performance and dependability. This Asus TUF GAMING B860M-PLUS WIFI motherboard, powered by the Intel B860 chipset, supports Intel Core Ultra Processors Series 2 on the LGA 1851 socket, resulting in a smooth and efficient performance for gaming and productivity. The Asus TUF GAMING B860M-PLUS WIFI Motherboard supports up to 256GB of DDR5 memory over four DIMM slots and can overclock memory speeds to 8800MT/s, delivering peak system performance for demanding tasks. For graphics, the Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard includes DisplayPort and HDMI ports, both supporting 4K at 60Hz, along with a USB 20Gbps Type-C port for high-quality video output. This Asus TUF GAMING B860M-PLUS WIFI motherboard also offers PCIe 5.0 x16 and PCIe 4.0 x4 slots, making it ideal for future-proof expansion with the latest graphics cards and peripherals. The Asus TUF GAMING B860M-PLUS WIFI Motherboard features 3 M of storage. Two slots with PCIe 5.0 x4 compatibility and four SATA 6Gb/s connections ensure quick and versatile storage solutions. The Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard has Wi-Fi 7 2x2 and Bluetooth v5.4, providing enhanced wireless connectivity for uninterrupted gaming and streaming. The Asus TUF GAMING B860M-PLUS WIFI motherboard provides unrivaled endurance with TUF LANGuard, ESD Guards, and overvoltage protection. The Asus TUF GAMING B860M-PLUS WIFI Motherboard, which has Aura Sync RGB lighting and an easy UEFI BIOS with CrashFree BIOS 3, is ideal for consumers looking for excellent performance in a small Micro-ATX form factor.
