Pay cash discounted price and save
EMI available for 12 months on regular price: ৳21,450
| Primary Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000/ 7000 Series Desktop Processors |
|
| Chipset | AMD A620 Chipset |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | 192GB |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 192GB |
|
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x HDMI port*** ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
|
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Others Features | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years |
|

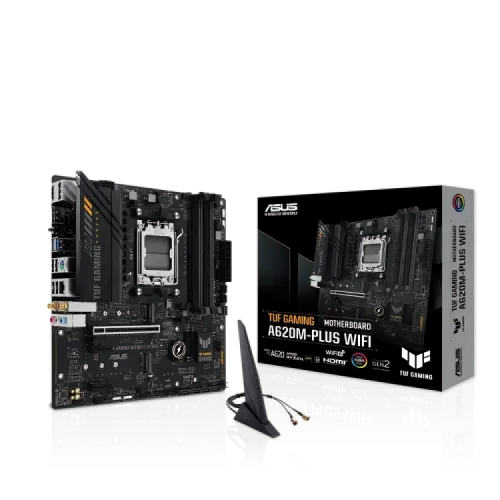

The ASUS TUF GAMING A620M-PLUS WIFI is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 192GB of DDR5 memory with speeds up to 7600MHz+ (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard supports ASUS-exclusive software such as Armory Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
