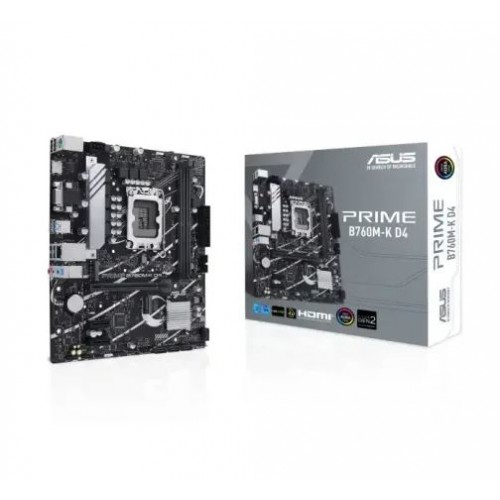

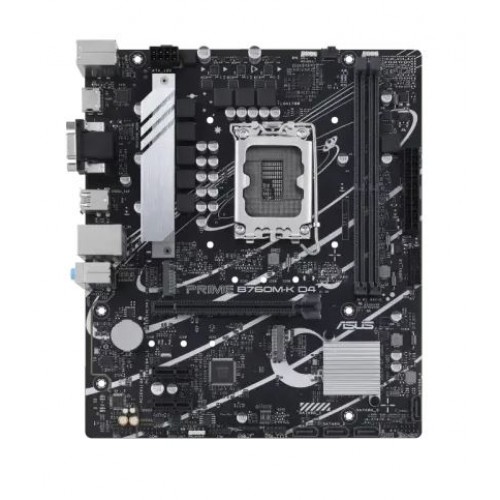

Asus PRIME B760M-K D4 mATX Motherboard

Price: 14,400 16,000
Regular Price: 16,000
Brand: ASUS
Status: In Stock
SKU: 580819
৳14,400
৳1,600 off
৳16,000

Main Features

  • Model: PRIME B760M-K D4
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DDR4, Max. 64GB 5333(OC)
  • Graphics Output: 1 x VGA port, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
Show More

Payment Methods

৳14,400

Pay cash discounted price and save

৳ 1,333/ month

EMI available for 12 months on regular price: ৳16,000

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Primary Information
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
2 x PCIe 4.0 x1 slots
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory DDR4
5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics
Graphics 1 x VGA port
1 x HDMI port
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x VGA port

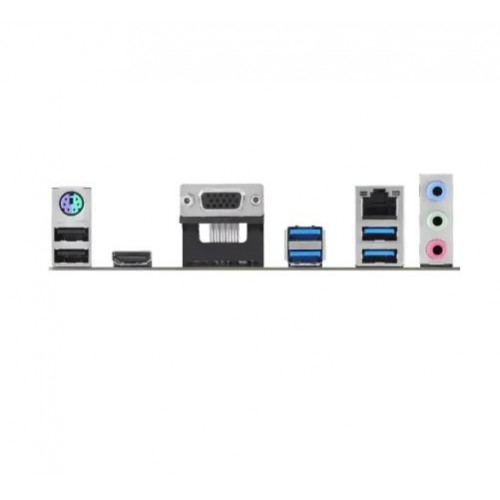

USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty 3 years warranty

Description

Asus PRIME B760M-K D4 mATX Motherboard

The Asus PRIME B760M-K D4 14th 13th & 12th Gen mATX Motherboard is a cutting-edge motherboard designed for high-performance computing. With support for Intel's latest 12th and 13th Gen processors and an LGA 1700 socket, this motherboard is ready to power your gaming rig or workstation with unparalleled speed and efficiency. One of the standout features of this motherboard is its ultrafast connectivity options. With PCIe 4.0 support, two M.2 slots for lightning-fast storage, Realtek 2.5Gb Ethernet for high-speed networking, and Wi-Fi 6 for wireless connectivity, you can expect blazing-fast data transfer speeds and lag-free online gaming. The 14th Gen mATX Motherboard also boasts a comprehensive cooling solution, featuring VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology. This ensures that your system stays cool even during intense gaming sessions or heavy workloads, allowing for optimal performance and stability. To enhance memory overclocking capabilities, this motherboard features ASUS OptiMem II technology, which carefully routes traces and vias and optimizes ground layers to preserve signal integrity. This results in improved memory overclocking potential, allowing you to push your system to its limits. This Asus PRIME B760M-K comes with Aura Sync RGB lighting, allowing you to customize the aesthetics of your build with onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips. These can be easily synced with other Aura Sync-capable hardware for a cohesive and synchronized RGB lighting setup. This motherboard offers rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports, providing versatile and high-speed connectivity options for peripherals and devices. the Asus PRIME B760M-K D4 14th 12th & 13th Gen mATX Motherboard is a feature-rich and powerful motherboard that provides excellent performance, connectivity, and cooling capabilities for your PC build. Whether you're a gamer, content creator, or professional, this motherboard is designed to meet your high-performance computing needs. With its support for Intel's latest processors, PCIe 4.0, M.2 storage, Realtek 2.5Gb Ethernet, Wi-Fi 6, Aura Sync RGB lighting, and comprehensive cooling solution, it's a top choice for those seeking a high-quality motherboard for their next PC build.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Asus PRIME B760M-K D4 mATX Motherboard in Bangladesh?

The best price of Asus PRIME B760M-K D4 mATX Motherboard in Bangladesh is 14,400. You can buy the Asus PRIME B760M-K D4 mATX Motherboard at best price from our website.
