| Primary Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
|
| Maximum Memory | 192GB |
|
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.) 1 x VGA port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
|
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
|
| Others Features | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

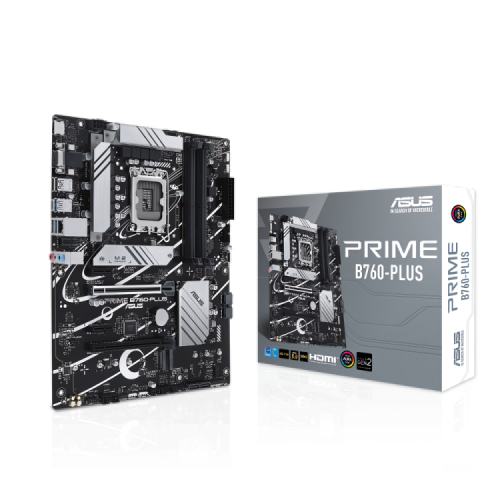

ASUS PRIME B760-PLUS Motherboard supports 14th 13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards.
Enhanced Power Design
This 14th Gen Motherboard is designed for gamers and enthusiasts, with a 12+1+1 dual rail power system and 8+8 pin power connectors to support the Core Boost technology, which boosts the performance of your multi-core Intel processor. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.
Premium Thermal Solution
The ASUS PRIME B760-PLUS Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.
High-Quality PCB for Enhanced Protection
The ASUS PRIME B760-PLUS features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.
