Pay cash discounted price and save
EMI available for 12 months on regular price: ৳15,300
| Basic Information | ||
| Supported CPU | - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel B760 | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support | |
| Expansion Slots | ||
| PCI | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
|
| M.2 Socket | - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Supports Intel Extreme Memory Profile (XMP) 3.0 |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | - 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| D-Sub (s) | 1x D-Sub | |
| Others Features | ||
| Special Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
|
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

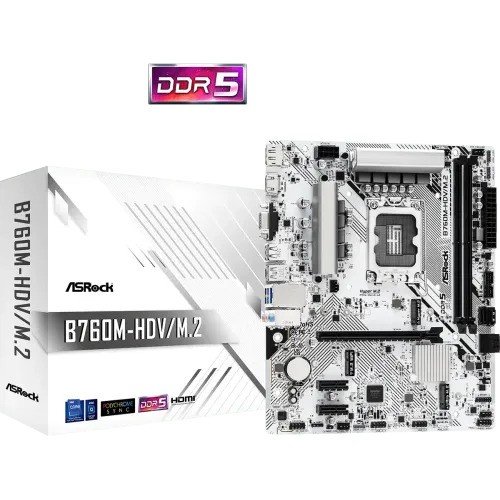

The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a compact yet powerful solution designed for those who demand high performance from their systems. It supports Intel's 14th, 13th, and 12th Gen Core processors with the LGA1700 socket, ensuring that your build is future-proof and capable of handling the latest technologies. The motherboard features a 7+1+1 power phase design, delivering stable and efficient power distribution, even under heavy workloads. It supports up to 7200+ MHz DDR5 memory in a dual-channel configuration, providing exceptional speed and responsiveness. The B760M-HDV/M.2 offers a PCIe 4.0 x16 slot for high-performance graphics cards, two PCIe 3.0 x1 slots for additional peripherals, and an M.2 Key E slot for WiFi connectivity. The board's graphics output options include HDMI, DisplayPort, and D-Sub, allowing for flexible multi-display setups. Audio is handled by the Realtek ALC897 7.1 CH HD Audio Codec, ensuring high-quality sound for an immersive experience. This motherboard provides ample options with four SATA3 ports, a Hyper M.2 slot (PCIe Gen4 x4), and an Ultra M.2 slot (PCIe Gen3 x4), catering to both speed and capacity requirements. Connectivity is also robust, featuring one USB 3.2 Gen1 Type-C port, five USB 3.2 Gen1 Type-A ports, and six USB 2.0 ports for all your peripheral needs. The Dragon 2.5G LAN ensures fast and reliable network performance, while the ASRock Auto Driver Installer makes setup and installation a breeze. Overall, the ASRock B760M-HDV/M.2 is an excellent choice for anyone looking to build a powerful, feature-rich system in a compact Micro ATX form factor.
