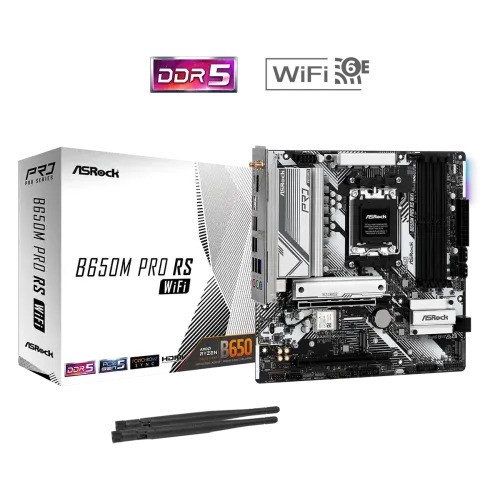

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard | BD Price
Regular Price | 27170 |
Status | In Stock |
Code | CV000382 |
- Model: B650M Pro RS WiFi
- Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
- Graphics Output: 1x HDMI, 1x DisplayPort
Key Features
বিঃদ্রঃ অস্থিতিশীল বাজার পরিস্থিতির কারণে পণ্য অর্ডার করার পূর্বে আমাদের হট লাইনে যোগাযোগ করুন।
Basic Information | |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
Special Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
Chipset | AMD B650 |
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
Expansion Slots | |
PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Ports, Connectors & Slots | |
Audio | 3 x Audio jacks |
Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header TPM (Trusted Platform Module ) - 1 x SPI TPM Header |
LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless Communication module - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO Supported Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
HDMI | 1x HDMI |
Memory Specifications | |
Maximum Memory | Max. 256GB |
Slots | - 4 x DDR5 DIMM Slots |
Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
Type | DDR5 |
Graphics Specifications | |
Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
Warranty | |
Warranty | 3 Years |
ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard | BD Price
The ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard is designed for high-performance AMD Ryzen 9000, 8000, and 7000 Series processors, supporting up to 4 DDR5 DIMMs with speeds up to 7200+ MHz. It features a 8+2+1 Power Phase VRM with Dr.MOS for stable power, perfect for gaming or content creation. With 1 PCIe 4.0 x16, 1 PCIe 3.0 x16 slots, and versatile storage options including PCIe Gen5, Gen4, and SATA3, it offers excellent expansion capabilities. Connectivity includes 2.5G LAN, Wi-Fi 6E, Bluetooth, HDMI, DisplayPort, and multiple USB ports for versatile usage.
Buy the ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard at the best price in Bangladesh from Computer Vision. The latest price in BD is 24,700৳, with a 3-year warranty. Visit Computer Vision for the best bd price.
