Pay cash discounted price and save
EMI available for 12 months on regular price: ৳418,000
| Main Feature | ||
| Capacity | 20KVA | |
| Load Capacity | 18 KW | |
| Input Voltage | 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
|
| Output Voltage | 200/220/230Vac (± 1%) |
|
| Noise Level | <60dB | |
| Others | Protection: Overload, Battery, Short circuit, Over temperature, EMI filter Operating temperature 0~40°C Storage temperature -25°C ~ 55°C (non ─ condensing) Humidity range <1500m Transfer time Oms (Line mode ↔ Battery mode) Overload 110% / 60min, 125% / 10min, 150% / 1min LED display Input, Inverter, Bypass, Battery, Output, Status |
|
| Input Features | ||
| Frequency | 50/60Hz (±5Hz) | |
| Power Factor | >0.9(with filter) |
|
| Output Features | ||
| Voltage Range | 200/220/230Vac (± 1%) | |
| Transfer Time | 0ms | |
| Power Factor | >89% | |
| Physical Specification | ||
| Dimension | 570 x 800 x 1195mm | |
| Manufacture Warranty | ||
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
|

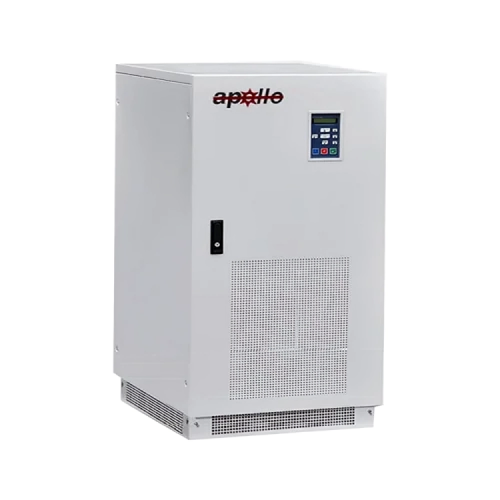

The Apollo 3P20K-L 20KVA Long Backup Online UPS is a highly reliable and robust uninterruptible power supply system, specifically designed to provide consistent power protection for sensitive equipment in industrial, commercial, and critical applications. With a high capacity of 20,000 VA (18 kW), the Apollo 3P20K-L 20KVA Online UPS ensures stable and efficient power delivery, making it ideal for environments where uptime is critical. The Apollo 3P20K-L Online UPS features an input voltage range of 380/400/415 Vac and operates within a frequency range of 50/60Hz (±5Hz), providing compatibility with various power grids. The output voltage is available in 200/220/230 Vac (±1%), delivering precise power for equipment. Equipped with a 384V DC battery, the Apollo 3P20K-L 20KVA UPS ensures long backup times, especially important during power outages. This Apollo 3P20K-L UPS operates with an impressive power factor of >0.9 on input and >89% on output, ensuring optimal energy efficiency. The system also features noise levels of less than 60 dB, making it perfect for noise-sensitive environments. For protection, the Apollo 3P20K-L UPS includes overload protection (110% for 60 minutes, 125% for 10 minutes, and 150% for 1 minute), high voltage, overheating, bypass, short circuit, and surge protection. In case of overload, the system will alarm and switch to bypass mode, automatically recovering once the load is removed. Additionally, the Apollo Online UPS incorporates intelligent battery management for longer battery life and more efficient operation. The Apollo 3P20K-L 20KVA UPS has physical dimensions of 570 x 800 x 1195 mm and operates within a temperature range of 0°C to 40°C, with a storage temperature of -25°C to 55°C. It also supports humidity up to <1500m. The built-in Galvanic Isolation Transformer enhances electrical isolation, adding an extra layer of safety. The LED display shows real-time status updates for input, inverter, bypass, battery, and output, while remote shutdown via intelligent software ensures greater control. The Apollo 3P20K-L 20KVA Long Backup Online UPS is the perfect solution for businesses needing continuous, high-quality power with extensive backup capabilities.
