Pay cash discounted price and save
EMI available for 12 months on regular price: ৳149,050
| Main Feature | ||
| Capacity | 10KVA | |
| Input Voltage | 110VAC±20%/220VAC±25% |
|
| Output Voltage | 110V±1%/220V±1% | |
| Noise Level | <58dB at 1 meter |
|
| Battery | DC Voltage: 192V Number: 12V/7Ah×16pCS |
|
| Alarm | AC fault, Battery low voltage, UPS over load, UPS fault |
|
| Others | Protection: Overload, Battery, Short circuit, Over temperature, EMI filter Interface: RS232 Temperature: 0℃~40℃ Humidity: 20~90% No condensing |
|
| Input Features | ||
| Frequency | 60Hz±5%/50Hz±5% | |
| Voltage Range | 110VAC±20%/220VAC±25% |
|
| Output Features | ||
| Voltage Range | 110V±1%/220V±1% |
|
| Type of Wave | Sine wave | |
| Transfer Time | AC fault: 0ms UPS fault: <2ms |
|
| Power Factor | 0.8-1 LAG | |
| Physical Specification | ||
| Dimension | 480×340×845mm | |
| Weight | 106 kg | |
| Manufacture Warranty | ||
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
|

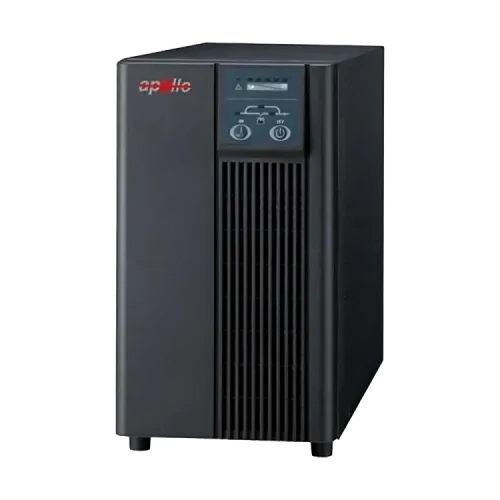

The Apollo 2B10K-L 10KVA is a sustainable online UPS designed for reliable and efficient operation in important applications. The Apollo 2B10K-L 10KVA Online UPS has a broad input voltage range of 110VAC±20% / 220VAC±25% and a stable output of 110V±1% / 220V±1% for constant power. The Apollo 2B10K-L UPS creates a crisp sine wave output with a 3:1 crest factor, frequency control at 60Hz ±0.5% / 50Hz ±0.5% (free running), and THD values below 5% for nonlinear loads. The Apollo 2B10K-L 10KVA UPS has an AC-to-AC rate of over 85%, which improves power usage. The 192V battery system (12V/7Ah × 16 pieces) offers longer backup and zero transfer time during power shortages. The Apollo 2B10K-L Online UPS has a complex alarm system that includes frequent alarms for AC failures, chronic overload warnings, and LED system state signs. Its noise level at 1 meter is less than 58dB, making it acceptable for different uses. The LED and LCD screens give real-time tracking of input/output voltage, battery capacity, load capacity, frequency, and temperature, while the RS232 link allows for distant monitoring of vital power factors. The Apollo 2B10K-L 10KVA Long Backup Online UPS measures 585 × 230 x 580mm and weighs 126 kg. It is the most effective power backup option for mission-critical systems, providing continuous operation and maximum uptime.
